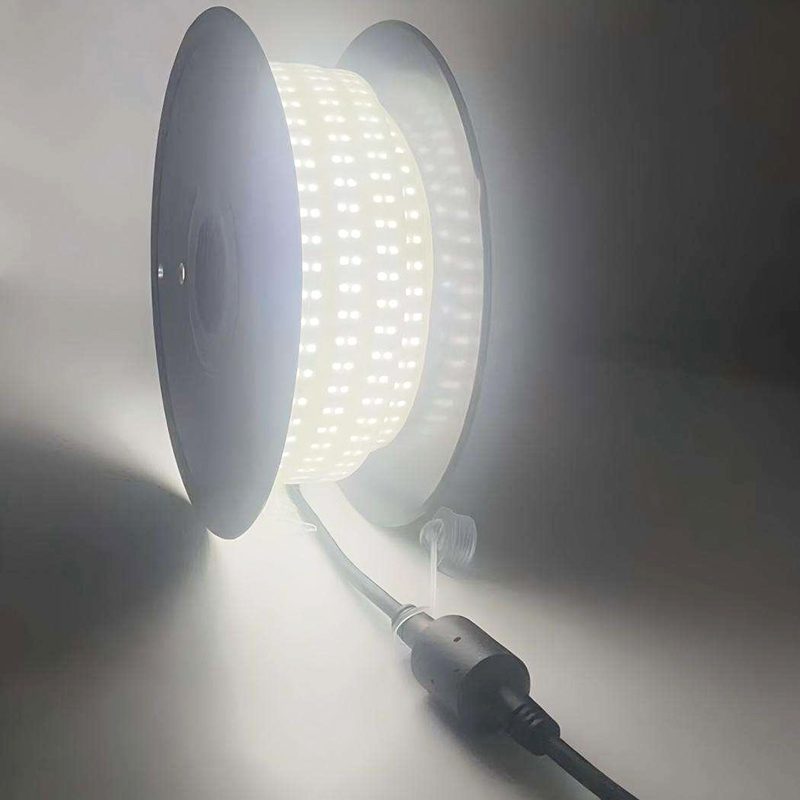

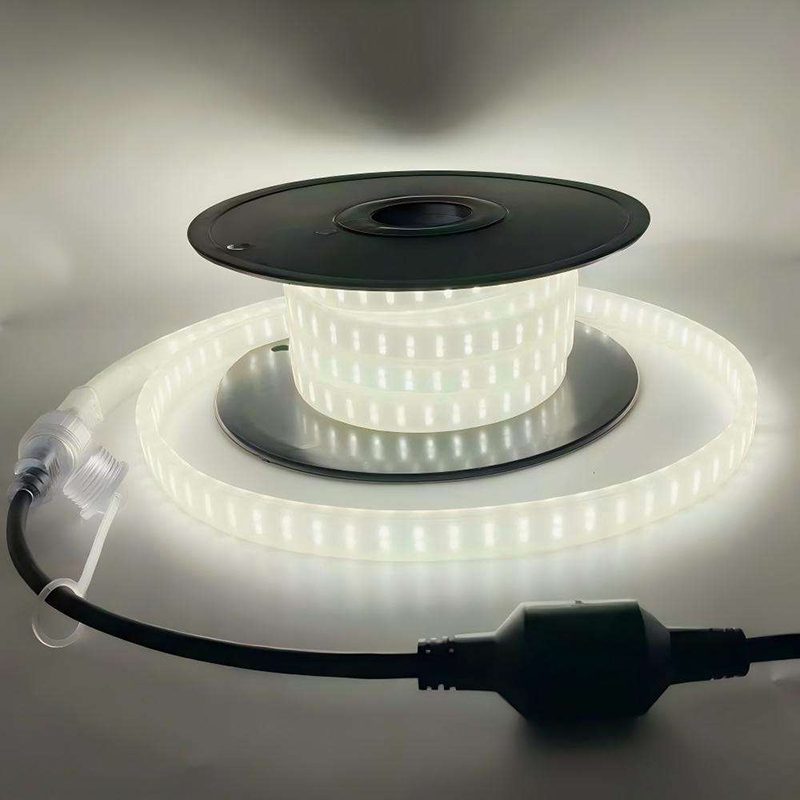

REELGO High Voltage LED strip Double Side Lighting Emitting
The highlight of double side lighting emitting strip light is equipped on both sides with 288LEDs per metre and 144leds per side.This means that the strip light can emitting lighting on both sides and is predestined for use in stairwellsor lift shafts. Alternatively, it can also be used in corridors or tunnels without much effort.
Technical Data
| Model | L15000mm | L25000mm | L50000mm | |
| General | Item Code | LM-S2825-288-230V | LM-S2825-288-230V | LM-S2825-288-230V |
| Material | Silicone +PCB+LED Chips | |||
| Finish | Transparent | |||
| Electrical | Lumen/W | 100lm @3000k | 103lm @3000k | 105lm @6000k |
| Watt/m | 13W | 13W | 13W | |
| Light Efficacy | 100-105lm/W | |||
| Input Voltage | AC220-240V | |||
| Frequency | 50/60Hz | |||
| THD | <20% | |||
| Optical | CCT | 3000K/4000K/6000K | ||
| Light Source | SMD2835 | |||
| CRI | >80Ra as Standard (Premium 90 under request) | |||
| Beam Angle | 360° | |||
| SDCM | <5 | |||
| Durability | Lifespan | >50,000H(L90,Tc＝55°C) | ||
| Warranty | 3Years | |||
| Operating Temperature | 一20°C ~ +40°C | |||
| IP Protection | IP65 | |||
| IK Protection | IK08 | |||
| Function | Dimmable | Dimmable | ||

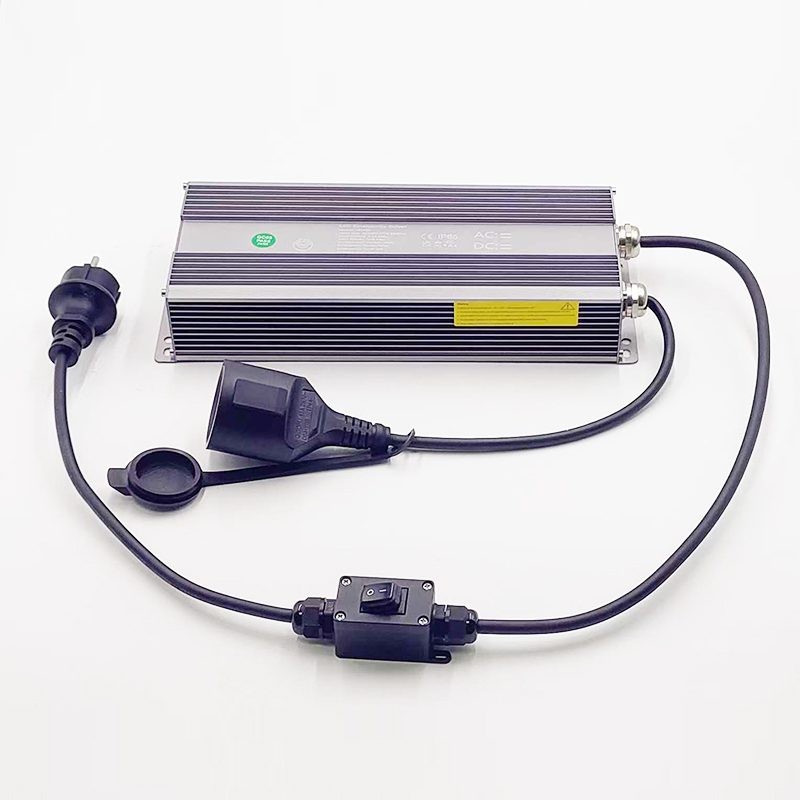

| Emergency | 50W@2H as Standard, Available on Request | |||
| Sensor | no | |||
| Standard | Test Report | IES; LM79; LM80; TM21; ISTMT; EMC; IEC60598; AS/NZS 60598 | ||
| Certificate | CE; RoHS; SAA.IP65,IK10 | |||
Applications:
