Underwater LED strips or neon lights used in swimming pools must have a waterproof rating of IP68.
Our IP68 / IP69 LED strip neon lights can be used underwater to a depth of 2 meters. And our IP68 led strip neon lights can be red, green, blue, yellow, orange, pink, tunable white, RGB, RGBW and addressable SPI RGB. The standard voltage is 24Vdc. If you need 12Vdc, we can customize it for you.
IP Code or Ingress Protection Code is defined in IEC 60529 which classifies and provides a guideline to the degree of protection provided by mechanical casings and electrical enclosures against intrusion, dust, accidental contact, and water. It is published in the European Union by CENELEC as EN 60529. If you want to know more detail, please click here.
Chlorination resistant
Secondly, LED strip lights or neon lights need to be chlorine corrosion resistant.The most common compounds used to disinfect swimming pools are forms of chlorine. Chlorine can corrode LED strips or neon lights, which is the reason why most LED strips and neon lights in the market will fail after sometime usage.
Our IP68 IP69 silicone neon lights have been tested against chlorine corrosion. We also develop stainless steel, chlorine-resistant mounting clips for use underwater in swimming pools. You can’t use aluminum profile in the swimming pools, as Chlorine chemicals can corrode aluminum.
Contact us to discuss your custom requirements and request a free quote.
Let’s explore more our Silicone Neon led strip lights below.
Altimo Neon IP68 Neon Strip

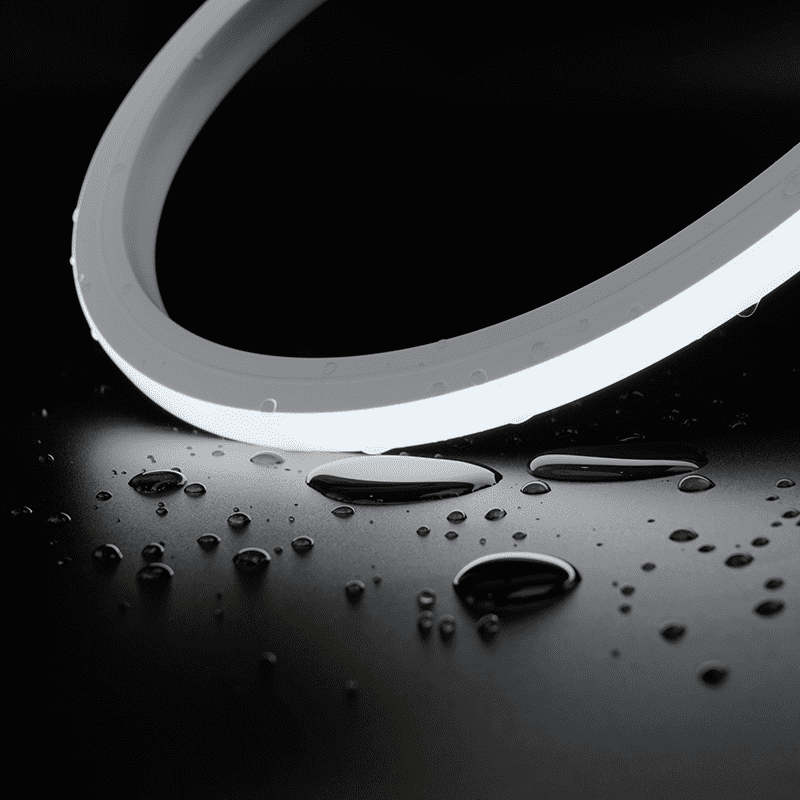

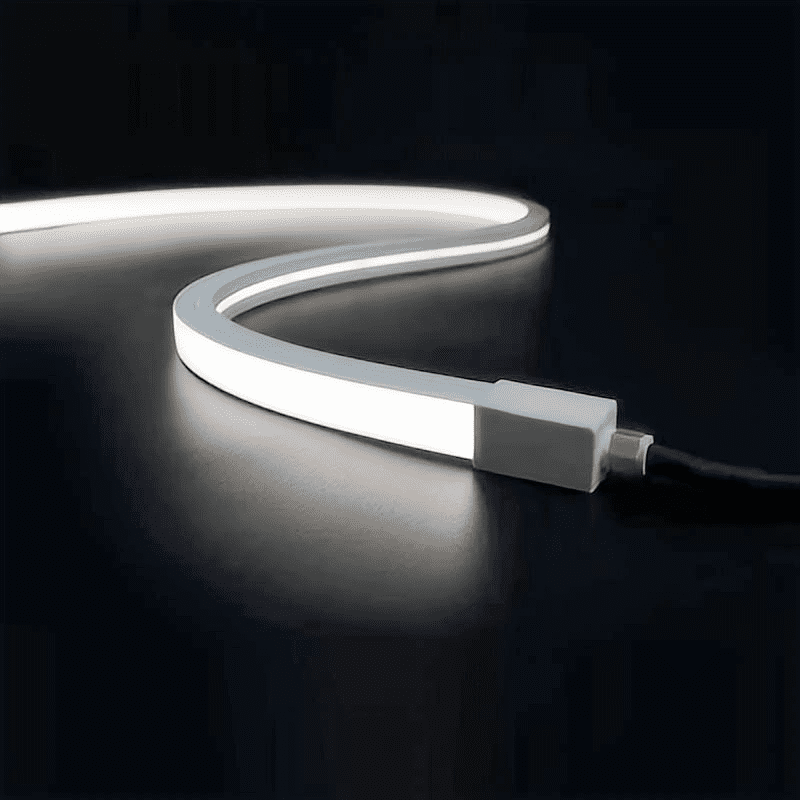

Altimo Neon IP68 Flexi Neon offers highly durable, flexible and diffused linear LEDs built for harsh environments.
- Environmental protection grade silicone material, integrated extrusion molding process.
- Unique optical light distribution structure design, uniform lighting surface and no shadow.
- IP68 protection level, salt solution resistance, weak acid and alkali corrosion, corrosive gases, fire and UV.
- Chlorination resistant, it can be used in underwater environment, such as swimming pool.
- Excellent toughness, simple and stylish appearance, delicate and unique.
- 3 years warranty, working life ≥30000 hours.

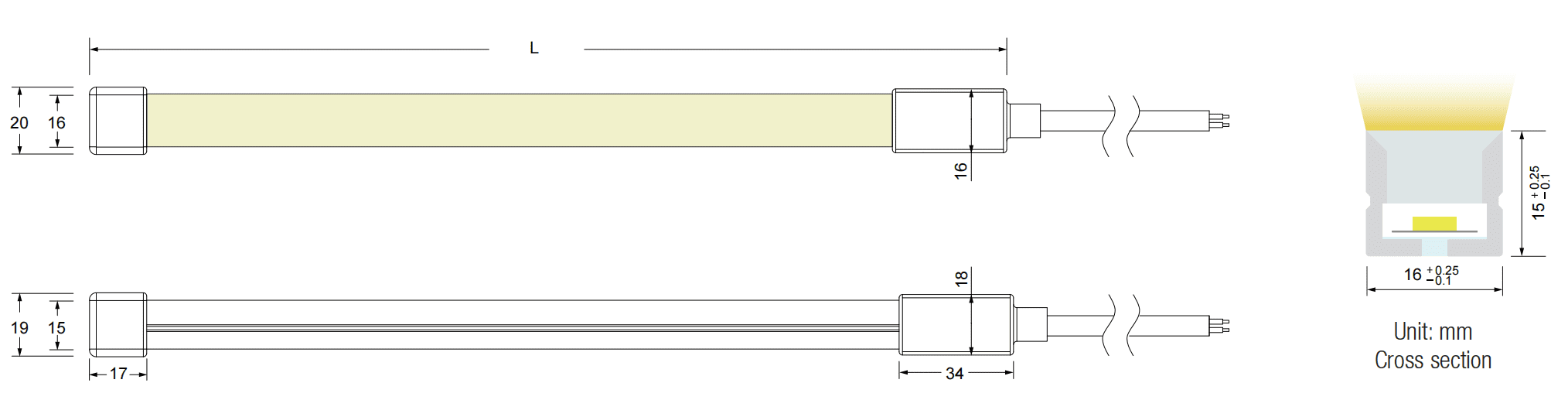

Technical drawing:
Technical Specifications:
| Model No. | NS-T1616SN-XX-IP68 | NS-T1616SN-CCT-IP68 | NS-T1616SN-RGB-IP68 |
| Power | 10W/m | 10W/m | 10W/m |
| CCT/Color | 1800K~6500K | 2700K+6000K | RGB |
| Lumen output (4000K) | 450Lm/m CRI80+ | 200Lm/m 2700k | 210Lm/m RGB
54.45LM/M, RED 200lm/m ,Green 39.5lm/m ,Green |
| 400Lm/m CRI90+ | 230Lm/m 6000K | ||
| 320Lm/m CRI95+ | 400Lm/m CRI95+ | ||
| MAXRUN | 15m （CC) | 5m (CV) | 5m |
| LEDs/m | Philips lumileds LEDs/m | 128LEDs/m | 96LEDs/m |
| Cut Length | Note suggested to cut it | ||
| CRI(White) | CRI90+ | CRI90+ | / |
| Voltage | 24V DC | ||
| Dimmable | Yes (PWM, DALI, 0/1-10V, Triac) | ||
| IP Rating | IP68 | ||
| Ambient temp. | -35°C ~ 45°C | ||
| Beam Angle | 120°/160° | ||
| Strip length/reel | 0.5m ~ 5m | ||
| Lifespan | 50,000Hrs | ||

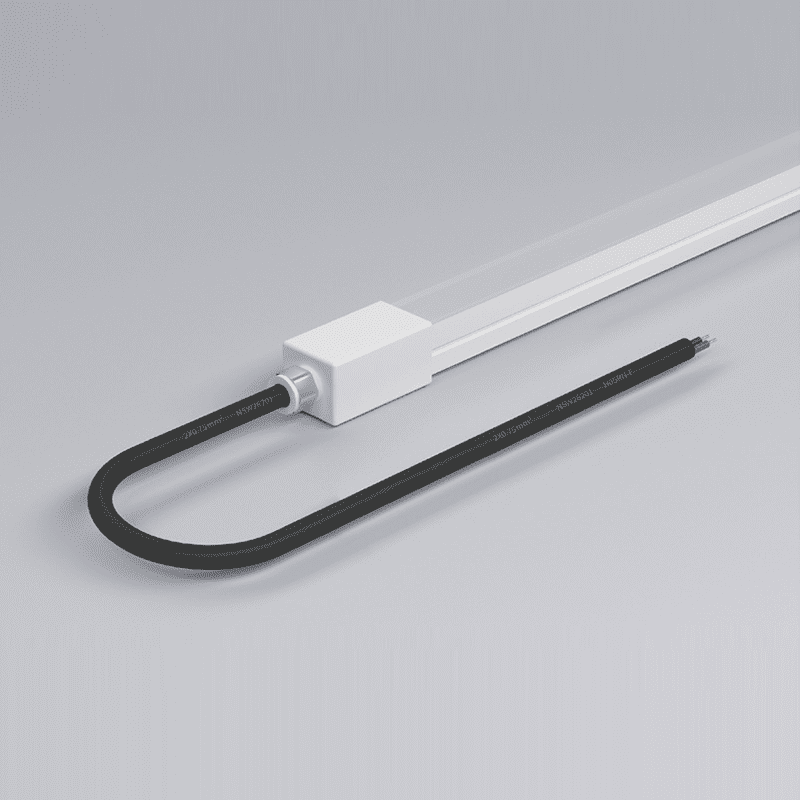

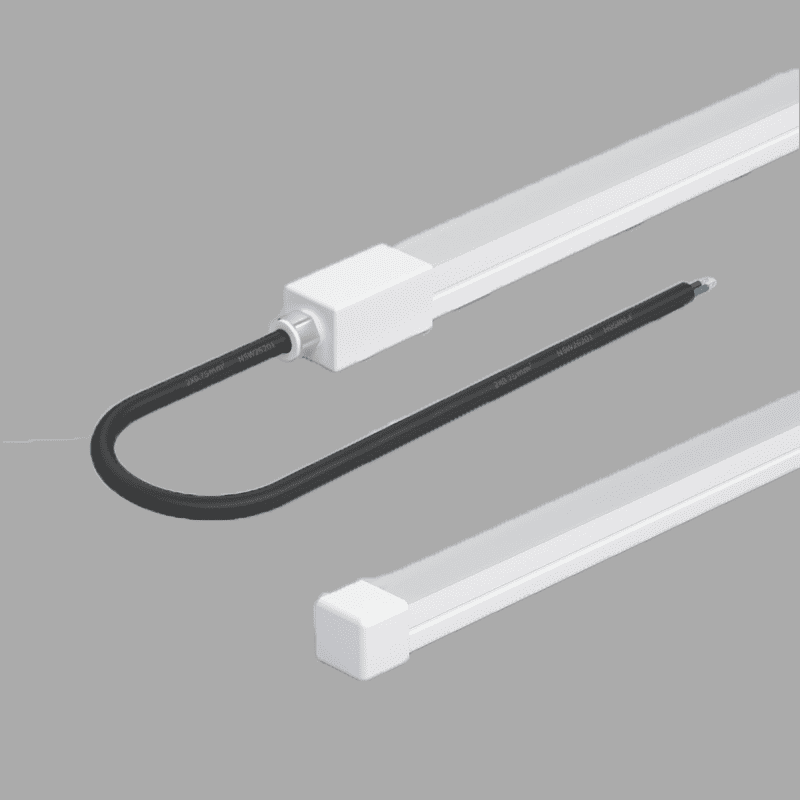

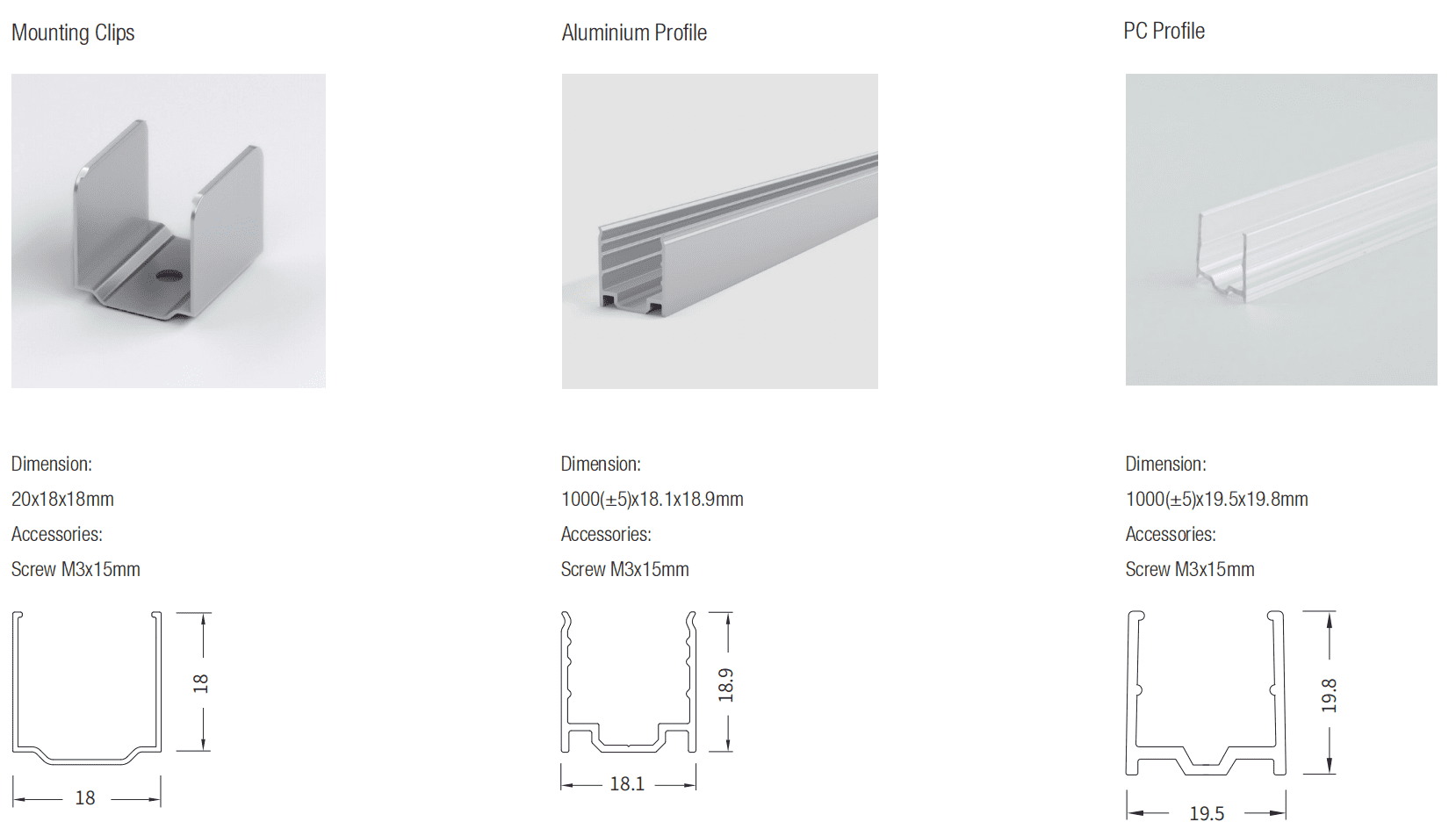

Accessories:

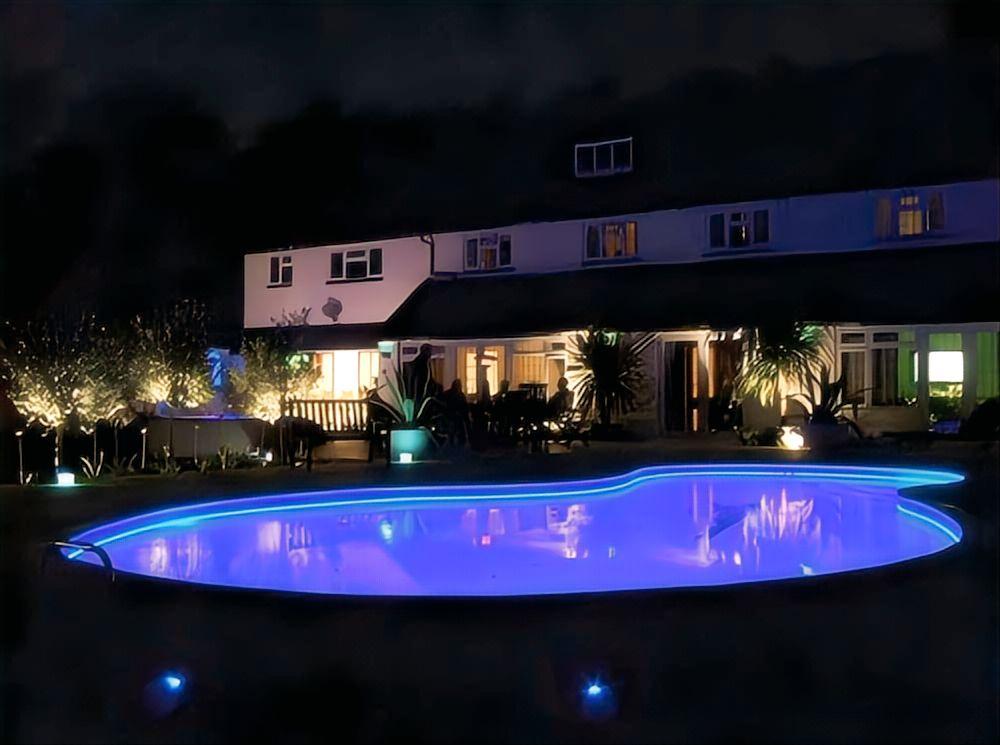

Applications:
