Product Description

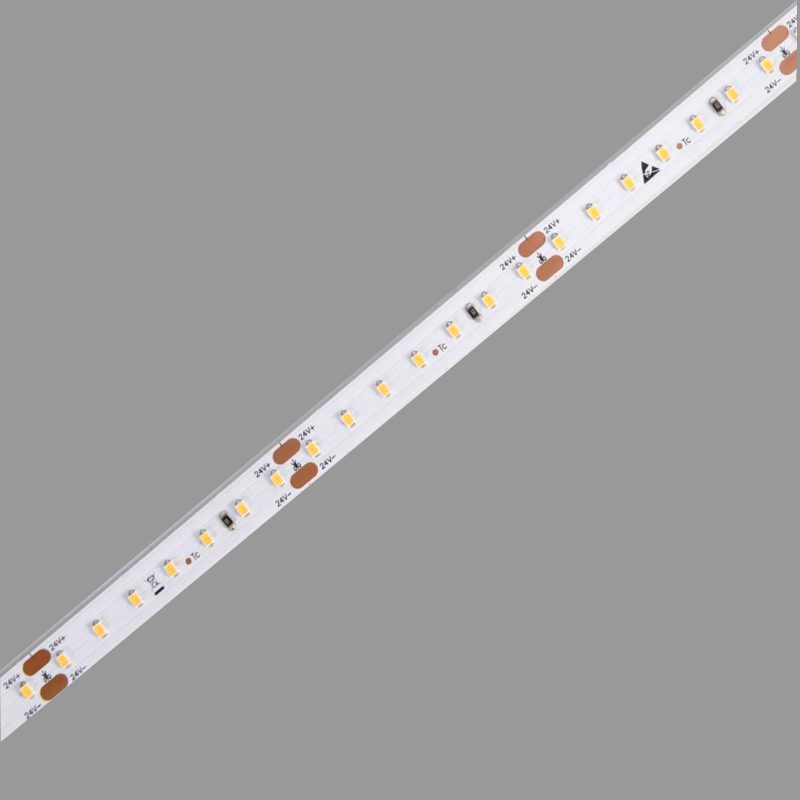

High efficiency SMD LED strip 140

High efficiency SMD LED strip 140

  • Luminance efficiency up to 150/180/200LM/W,
  • high Ra. -Use 2835 high brightness led, high purity gold line, SANAN chip.
  • 64/90/128/140/180/224/240LEDs/M
  • 1+2 OZ copper thickness FPC, 10mm PCB width.
  • Higher efficiency: Consumes less energy, saving electricity and reducing energy costs.
  • Longer lifespan: Lasts significantly longer, reducing the need for frequent replacements

High efficiency SMD LED strip 140

TheHigh efficiency SMD LED strip 140 features high-CRI LED light engines.

With CRI of 98+ and R9 values of 99+, the range offers exceptional colour precision, ideal for high-end retail and hospitality applications.

With IP20, IP54, and IP67 options, Lumen Line is suitable for both indoor and outdoor environments.

The range offers design flexibility with various chip counts, wattages, and colour options including Single-Colour and Dynamic White, as well as the unique Solo variant with individual LED cutting intervals.

High efficiency SMD LED strip 140

Model No. LM140-S2835-W27-W24-CRI90-IP20-15D-500
Power 3W-14W/m
PCB width 8mm
Lumen output  (4000K) 480-1900Lm/m ,CRI 90+
MAXRUN 5meter
leds/m 140LEDS/m
Cut Length 50mm
Voltage 24V DC
CCT 2700~6500K
CRI CRI90+~95+
Dimmable Yes (PWM, DALI, 0/1-10V, Triac)
IP Rating IP20/IP65/IP67/IP68
Ambient temp. -35°C ~ 50°C
Beam Angle 180°
Strip length/reel 0.5m ~ 50m
Lifespan 50,000Hrs
