Definition

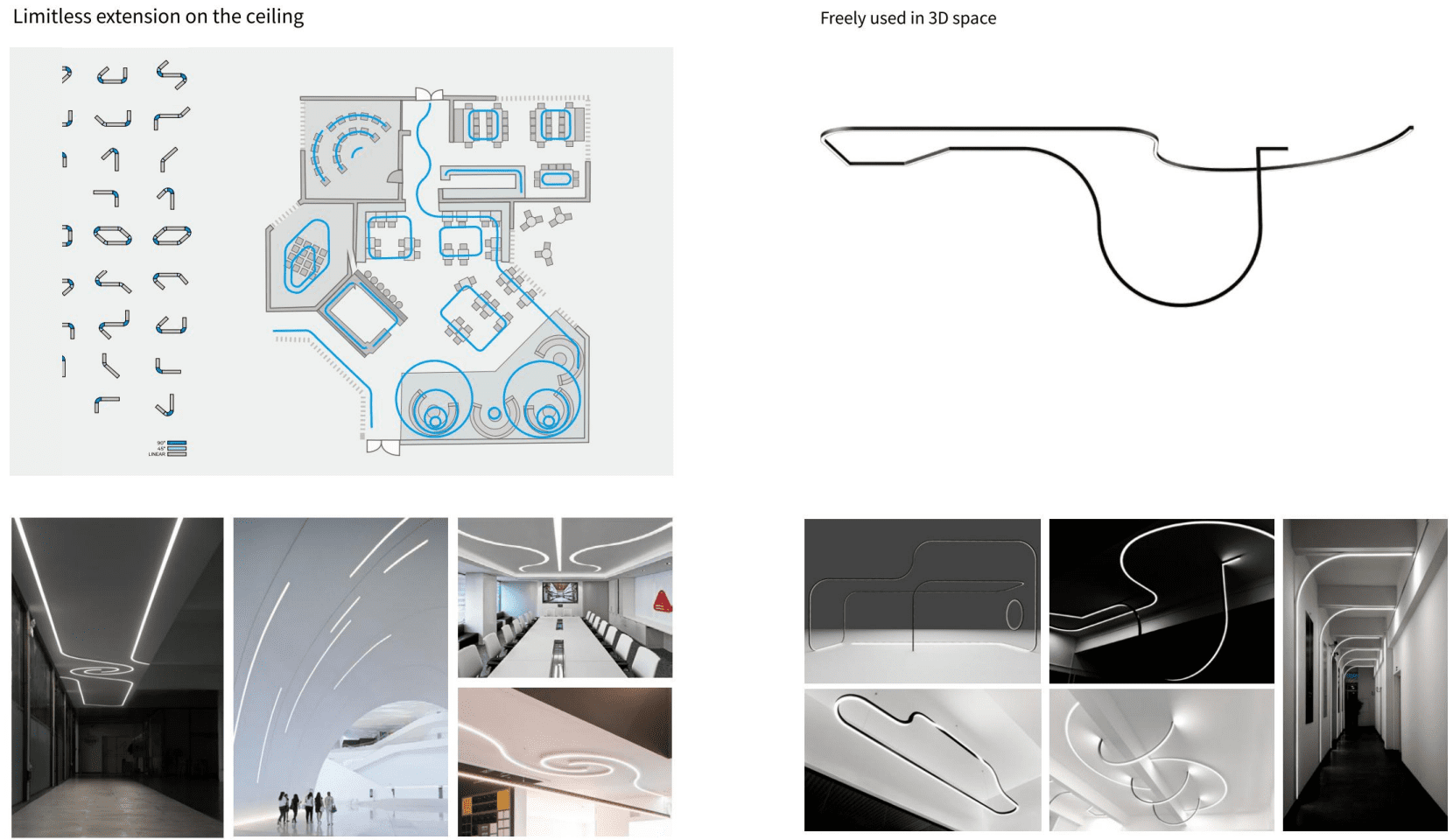

Continuous linear LED lighting refers to a modular lighting system made up of multiple linear LED fixtures connected seamlessly to form one continuous light line. These fixtures can be installed in straight lines, L-shapes, U-shapes, curved circle shape or even complex geometric patterns, creating a consistent, uninterrupted beam of light without visible dark spots.

What are Differences from Traditional Fixtures?

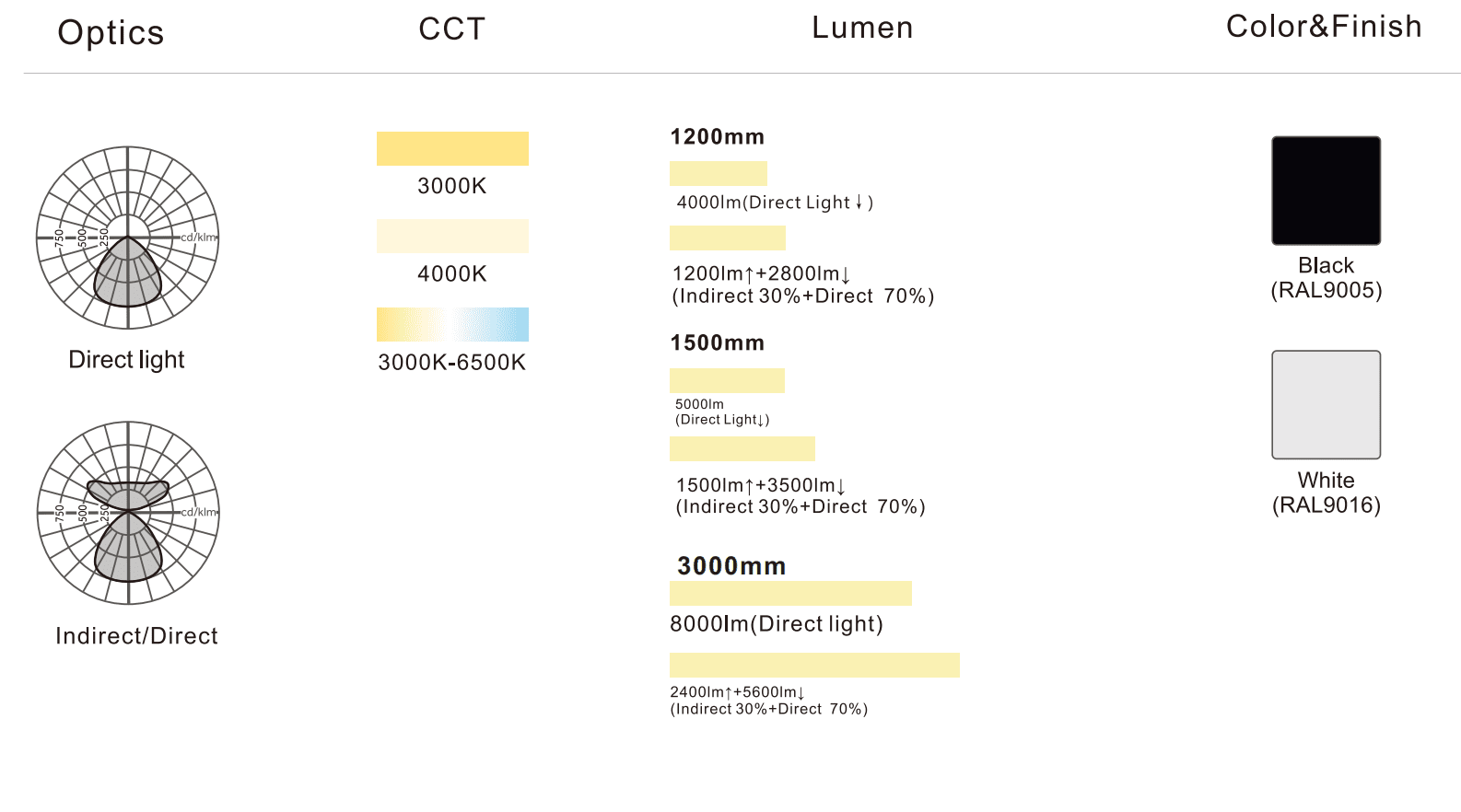

Data Performance Comparison Table

Continuous Illumination Concept

The defining characteristic of continuous linear lighting is “no visual interruption” — the light appears as one solid beam, even though it’s made up of multiple modules. This is achieved through precision optics and diffusers that eliminate the gaps between fixtures.

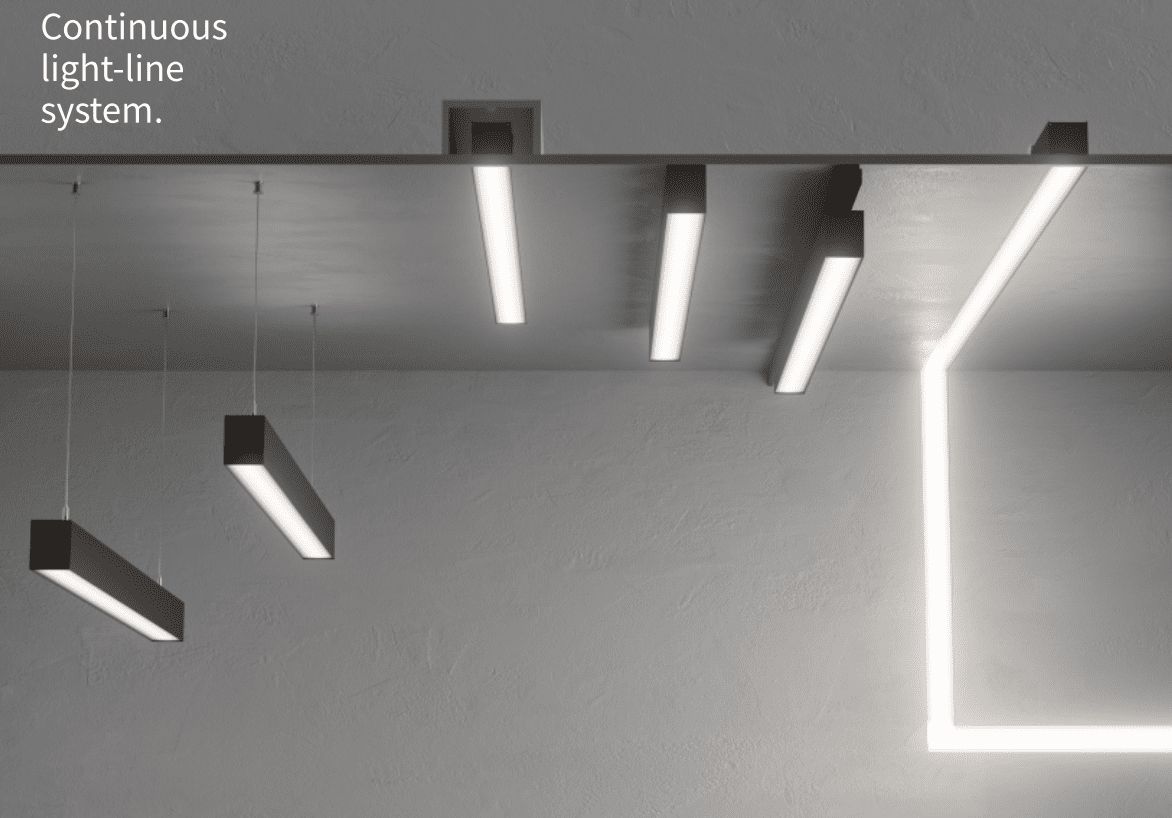

Common Form Factors

Continuous linear LED lights come in multiple installation options:

• Recessed-mounted:Flush with the ceiling or wall surface for minimalist aesthetics.
• Surface-mounted:Easy to install on concrete or wooden ceilings.
• Suspended-mounted:Ideal for offices and open spaces requiring uniform downlight.
• Magnetic track system:Flexible modular system allowing easy repositioning of lights.

A continuous linear LED system is composed of five essential parts:

1. LED Light Source (Chips):Provides the base light output with high luminous efficacy (up to 150 lm/W).
2. Aluminum Profile / Housing:Ensures heat dissipation, structural integrity, and design flexibility.
3. Optical Diffuser:Normally PC or PMMA Opal diffuser ,Microprismatic diffuser or Linear louvre for excellent glare control
4. Connectors and Couplers:Mechanically and electrically connect multiple fixtures seamlessly.
5. Power Supply / Driver: Converts AC to DC and ensures stable performance and dimming control.
6. Direct or indirect lighting :it is also related the UGR level in one space,but sometimes,some of us are still confused how to use rightly for direct &indirect lighting, please read this post :The guides how to Choose direct lighting or indirect lighting when using led linear lighting

Modular Connection & Electrical Series

Each linear light module has male/female connectors that allow continuous electrical linking. Power is typically supplied at one or both ends of the series. The joints are designed for precision alignment, maintaining a smooth luminous surface.

Seamless Light Effect

By combining high-density LEDs On Designed PCB with professional Continuous Optical diffuser, the system eliminates “dark zones” at fixture junctions. The result is a continuous beam effect that enhances architectural symmetry.

Smart Dimming & Control

Modern continuous linear systems support multiple dimming and control protocols:

• 0-10V or DALI dimmingfor precise brightness adjustment.

• Zigbee, Casambi Bluetooth, or Wi-Fi smart control integration for IoT lighting systems.
• Motion sensor or harvest sensor
• Tunable whiteand RGB versions available for dynamic ambient environments.

1. Uniform, Shadow-Free Illumination

No dark lines or patchy spots — the light flows continuously, ensuring even brightness across the space.

2. Energy Efficiency

Advanced LED chips and efficient drivers reduce energy consumption by up to 60% compared to traditional fluorescent tubes.

3. Flexible Design & Modular Customization

Lengths can be customized (0.6m, 1.2m, 2.4m, 3m etc.), and the fixtures can be arranged into various shapes or angles to fit architectural features.

4. Sleek and Modern Aesthetic

Minimalist linear lighting blends perfectly into ceilings, walls, and furniture, providing a clean, high-end look.

5. Smart Lighting Compatibility

Easily integrated into intelligent control systems, allowing for occupancy sensing, daylight harvesting, and personalized lighting scenes.

6. Long Lifespan & Low Maintenance

High-quality LEDs last over 50,000 hours, reducing replacement and maintenance costs for commercial buildings.

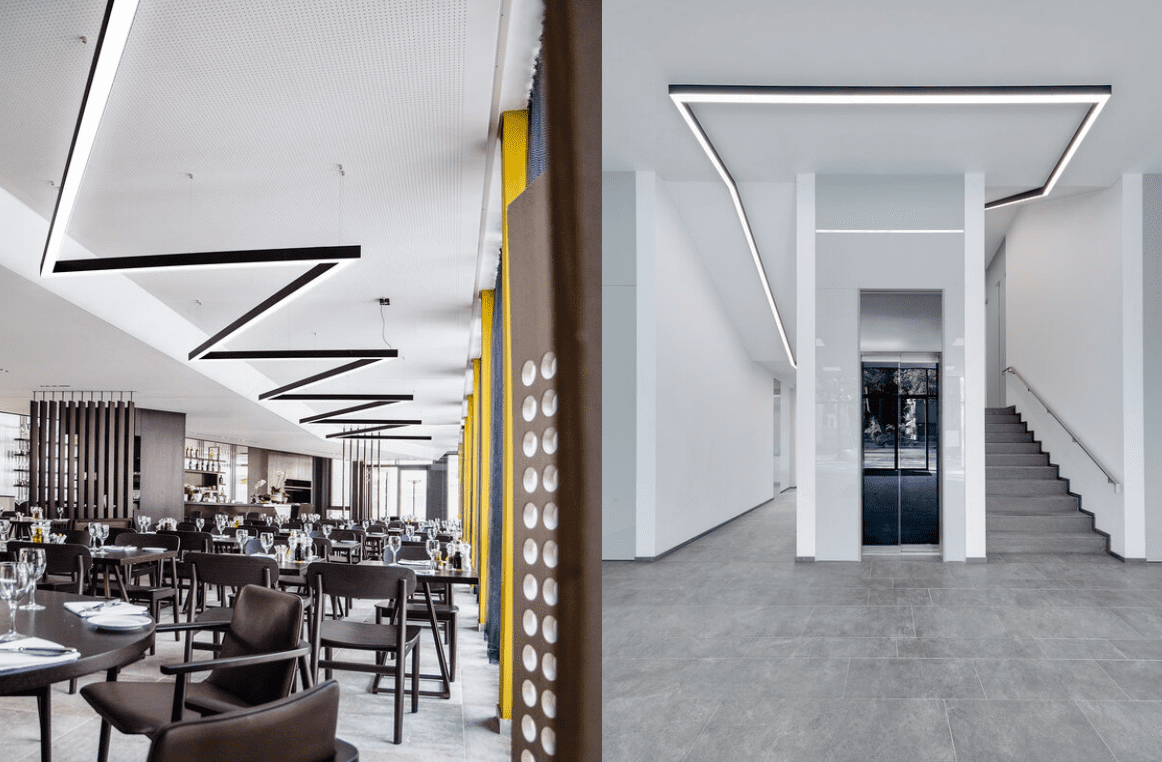

Typical Applications

Continuous linear LED lighting is highly versatile and fits nearly any modern environment.

When selecting a linear LED system for your project, consider these key aspects:

1. Installation Method

• Recessed: seamless finish, ideal for offices.
• Suspended: for open ceilings or architectural designs.
• Surface-mounted: easy installation for retrofit projects.

2. Color Temperature (CCT)

3. Color Rendering Index (CRI)

Choose CRI ≥ 90 for spaces that demand accurate color representation (showrooms, retail, art spaces).

4. Lighting Control

Option for DALI or Casambi Bluetooth smart control  if you need energy management or scene control integration.

5. Manufacturer & Certification

Always choose a professional LED lighting manufacturer with certifications like CE, RoHS, UL, and ISO9001 to ensure safety and performance.

Lumiwise Lighting provides fully customizable continuous linear lighting systems with professional optical design, reliable drivers, and global export service support.

1. Plan the Layout:Draw a lighting map before installation to avoid wiring conflicts and dark zones.
2. Check Power Supply:Use constant voltage drivers matching the LED system’s wattage and voltage.
3. Ensure Proper Alignment:Tighten connectors and test alignment before powering up.
4. Consider Heat Dissipation:Avoid sealing fixtures in airtight structures; allow airflow to extend LED lifespan.
5. Regular Cleaning:Use soft dry cloths to remove dust and keep diffusers clear for maximum light output.

Continuous linear LED lighting represents a modern, flexible, and efficient lighting solution for today’s architecture.

Its ability to deliver seamless illumination, adapt to complex designs, and integrate smart controls makes it a favorite among lighting designers and facility managers.

Whether for offices, retail, hotels, gyms or architectural projects, continuous linear lighting is shaping the future of visual comfort and spatial aesthetics.

Contact [lumiwise lighting] today to explore our custom linear lighting solutions or request a free sample for your next project.

1. What makes continuous linear LED lighting different from LED strip lights?
   Continuous linear systems use rigid profiles and optical diffuser (lourver) to achieve professional-grade uniformity, while strip lights are flexible but prone to brightness inconsistencies.
2. Can linear LED lights be dimmed or color-tuned?
   Yes. Most systems support 0–10V, DALI, or smart app control for brightness and color temperature adjustment.
3. How long do continuous linear LED lights last?
   With proper heat management, they typically last 80,000 to 100,000 hours ,that means 5-7 years warranty

4. Are these lights suitable for outdoor use?
   Yes, IP65 or higher-rated models are designed for semi-out corridorlighting.
5. What is the ideal mounting height for suspended linear lights?
   Usually 2.5–3 meters from the floor, depending on room height and brightness requirements.
