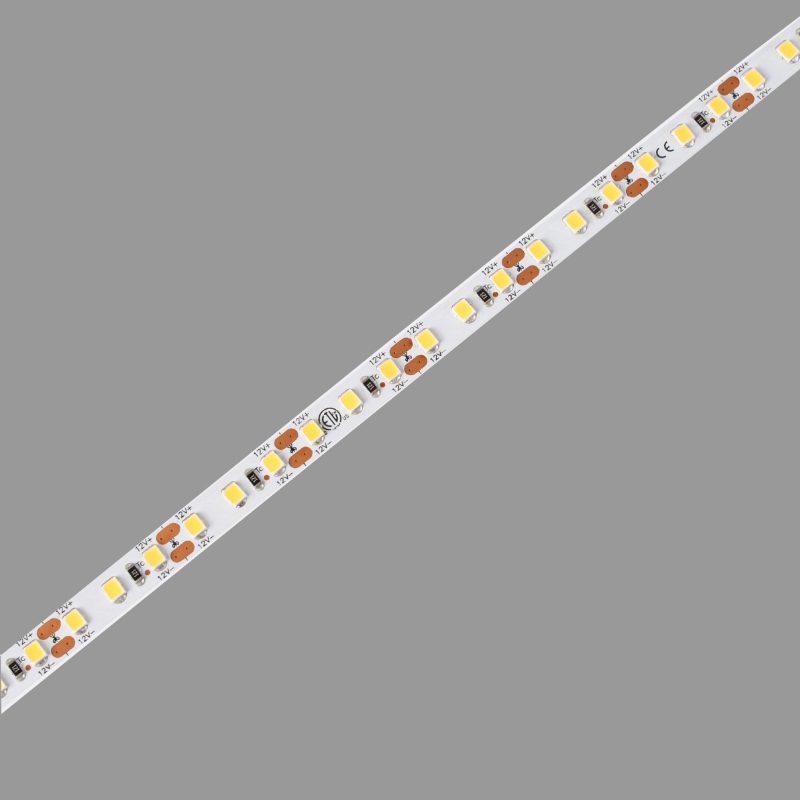

Classic SMD 2835 LED strip 120
General Features:
The Classic SMD 2835 LED strips features high cost -effective LED light engines.
With CRI of 95+ and R9 values of 60+, the range offers exceptional colour precision, ideal for high-end retail and hospitality applications.
With IP20, IP54, and IP67 and IP68 options, Lumen Line is suitable for both indoor and outdoor environments.
The range offers design flexibility with various chip counts, wattages, and colour options including Single-Colour ,Dynamic White, and RGBW as well as the unique Solo variant with individual LED cutting intervals.
Multiple FPC width 4mm ,5mm,8mm ,10mm and 12mm for options ,perfectly as light engines for LED aluminum profiles
Lumen Line High efficiency SMD LED strip 120
| Model No. | LM120-S2835-W27-W24-CRI90-IP20-15D-500 |
| Power | 3W-20W/m |
| PCB width | 5mm/8mm |
| Lumen output (4000K) | 480-2500Lm/m ,CRI 90+ |
| MAXRUN | 5meter |
| leds/m | 120LEDS/m |
| Cut Length | 50mm |
| Voltage | 24V DC |
| CCT | 2700~6500K |
| CRI | CRI90+~95+ |
| Dimmable | Yes (PWM, DALI, 0/1-10V, Triac) |
| IP Rating | IP20/IP65/IP67/IP68 |
| Ambient temp. | -35°C ~ 50°C |
| Beam Angle | 180° |
| Strip length/reel | 0.5m ~ 50m |
| Lifespan | 50,000Hrs |
