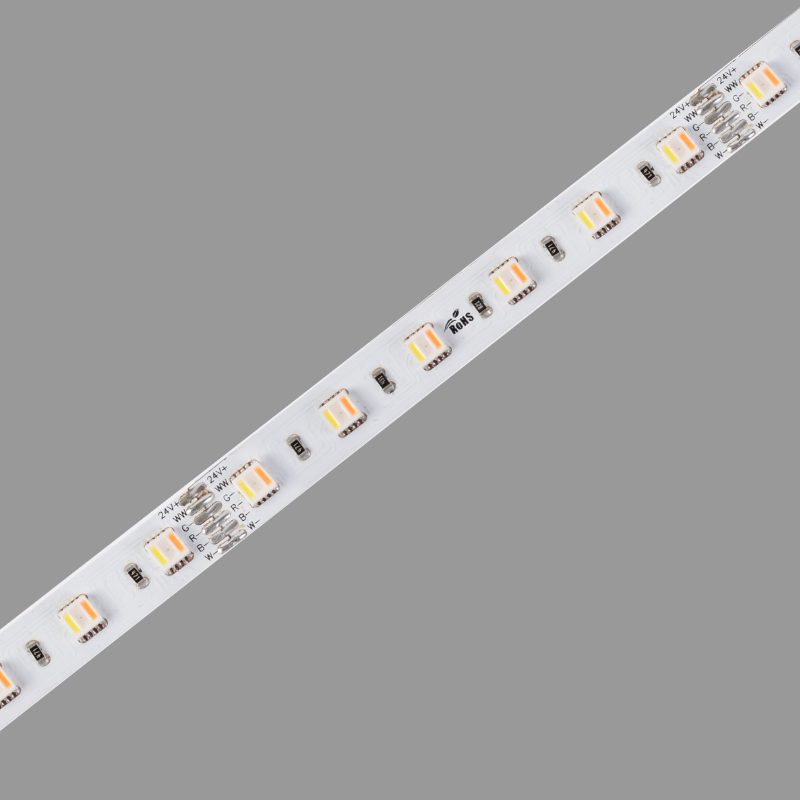

Classic SMD 5050 RGBCW LED strip 60
General Features:
The Classic SMD 5050 RGBCW 5 In 1 LED strips features dynamic Colorful LED light engines.
With IP20, IP54, and IP67 and IP68 options, Lumen Line is suitable for both indoor and outdoor environments.
The range offers design flexibility with various chip counts, wattages, and color options including Single-Colour ,Dynamic White, and RGBCW to create changeable color in the space.
width 12mm for options ,perfectly as light engines for LED aluminum profile installation.
Technical Specification
| Model No. | LM60-S5050-RGBCW-W24-CRI90-IP20-15D-500 |
| Power | 19.2W/m |
| PCB width | 12mm |
| Lumen output | 1650lm/m ,CRI 90+ |
| MAXRUN | 5meter |
| leds/m | 60LEDS/m |
| Cut Length | 50mm |
| Voltage | 24V DC |
| CCT | RGBW (WW2400k-3000K option), C 4000K-6500K) |
| CRI | CRI90+~95+ |
| Dimmable | Yes (PWM, DALI, 0/1-10V, Triac) |
| IP Rating | IP20/IP65/IP67/IP68 |
| Ambient temp. | -35°C ~ 50°C |
| Beam Angle | 180° |
| Strip length/reel | 0.5m ~ 50m |
| Lifespan | 50,000Hrs |
