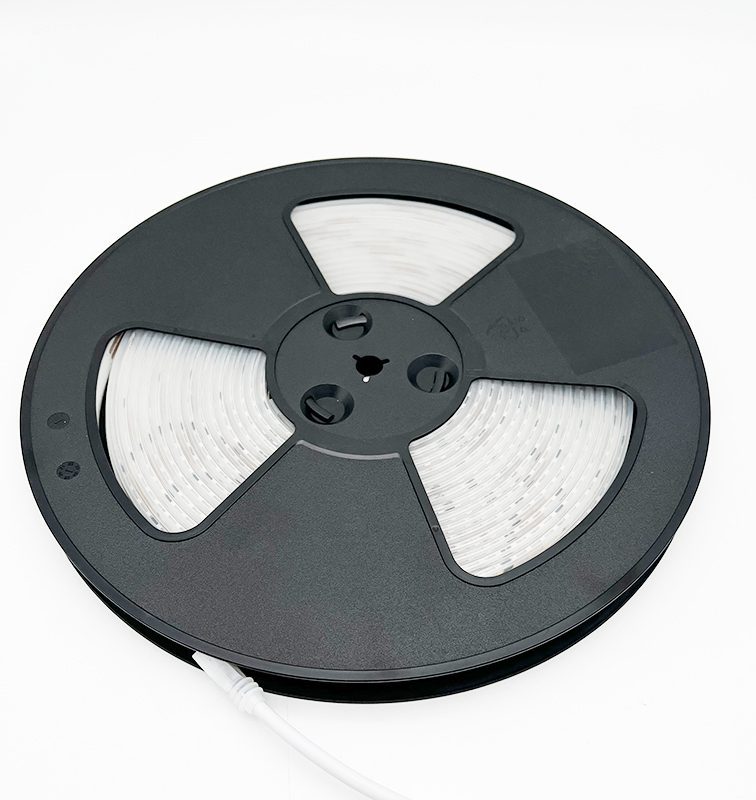

What are Driverless AC LED Strip Lights?
High voltage led strip light is a light strip driven by high voltage. As it is powered by alternating current, it is also called an AC led light strip. Such as AC110V/120V/230V/240V led strip lights.
Traditional high voltage led strip in the market has power supply plug on the beginning to change AC to DC, and the cut unit length usually is 50cm or 100cm.
But Lumiwise ‘s high voltage led strip is put diode rectifier on PCB, not need power supply plug at all, so it sometimes called driverless led strip, and the cut unit length is shorter only 10cm.
Technical Data
| Model | L5000mm | L25000mm | L50000mm | |
| General | Item Code | LM-S2825-120-230V | LM-S2825-120-230V | LM-S2825-120-230V |
| Material | Silicone +PCB+LED Chips | |||
| Finish | Transparent | |||
| Electrical | Lumen/W | 102lm @3000k | 107lm @3000k | 110lm @6000k |
| Watt/m | 14W | 14W | 14W | |
| Light Efficacy | 100-110lm/W | |||
| Input Voltage | AC220-240V | |||
| Frequency | 50/60Hz | |||
| THD | <20% | |||
| Optical | CCT | 3000K/4000K/6000K Fixed CCT | ||
| Light Source | SMD2835 | |||
| CRI | >80Ra as Standard (Premium 90 under request) | |||
| Beam Angle | 120° | |||
| SDCM | <5 | |||
| Durability | Lifespan | >50,000H(L90,Tc＝55°C) | ||
| Warranty | 3Years | |||
| Operating Temperature | 一20°C ~ +40°C | |||
| IP Protection | IP65 | |||
| IK Protection | IK07 | |||
| Function | Dimmable | Dimmable | ||
| Emergency | 50W@2H as Standard, Available on Request | |||
| Sensor | no | |||
| Standard | Test Report | IES; LM79; LM80; TM21; ISTMT; EMC; IEC60598; AS/NZS 60598 | ||
| Certificate | CE; RoHS; UKCA; SAA | |||

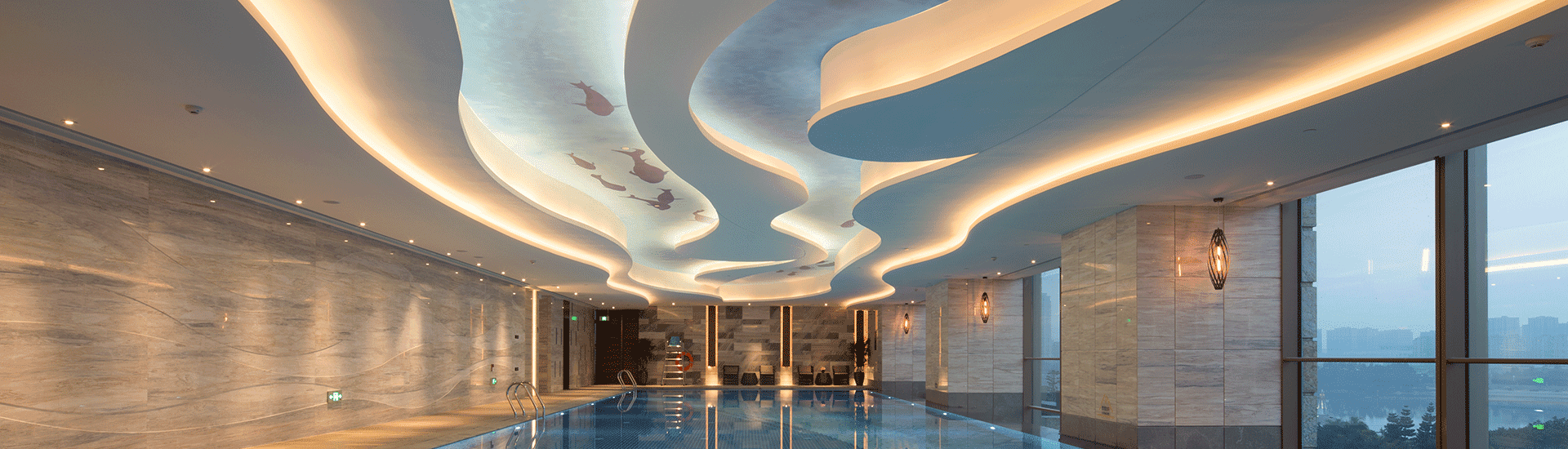

Applications:
