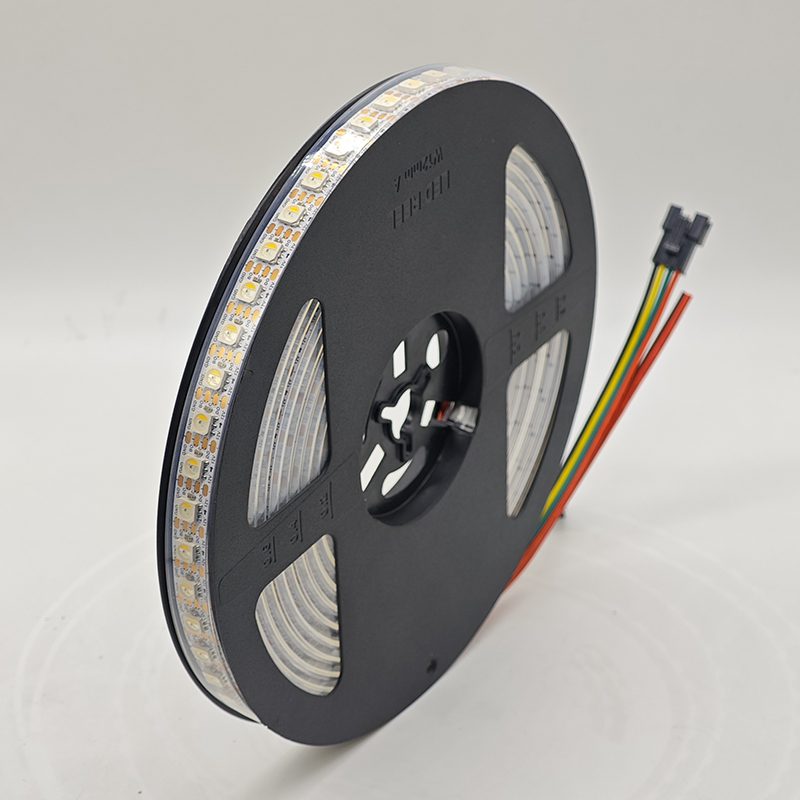

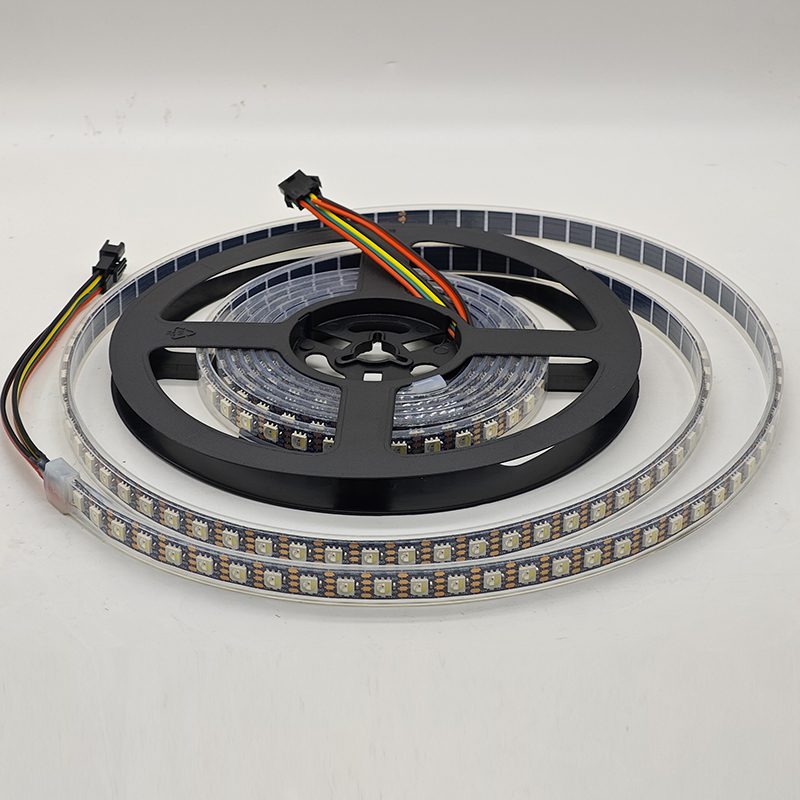

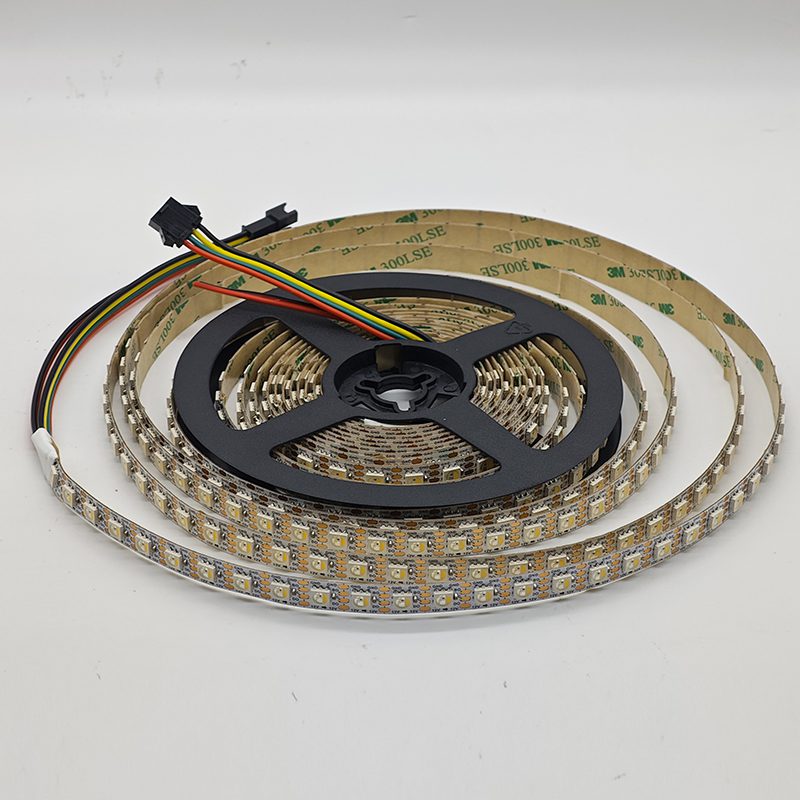

Pixel Strip RGBW SPI IC HD105 96
The Flexi Pixel Strip RGBW SPI IC HD105 strip Range is a versatile series of flexible, linear LED light engines designed for diverse interior and exterior applications. Each family offers unique features and is streamlined to ease specification. Available in IP20, IP54, and IP67, the range includes pixel individual addressable RGBW, with a variety of chip counts, wattages, and colour temperatures. Pixel Strip RGBW SPI IC HD105 strip can be seamlessly combined with a selection of Flex Profiles to address any linear lighting application.
Technical Specification
| Model No. | LM96-S5050 -HD105-RGBW-10MM-2408-100 |
| Power | 18W/m |
| PCB width | 10mm |
| Lumen output (4000K) | 1000Lm/m |
| MAXRUN | 5meter |
| Chips/m | 60LEDS/m |
| Cut Length | 50mm |
| Voltage | 12V DC |
| CCT | RGBW |
| CRI | CRI90+~95+ |
| Dimmable | K-1000 Controller |
| IP Rating | IP20/IP65/IP67/IP68 |
| Ambient temp. | -35°C ~ 50°C |
| Beam Angle | 180° |
| Strip length/reel | 0.5m ~ 50m |
| Lifespan | 50,000Hrs |
