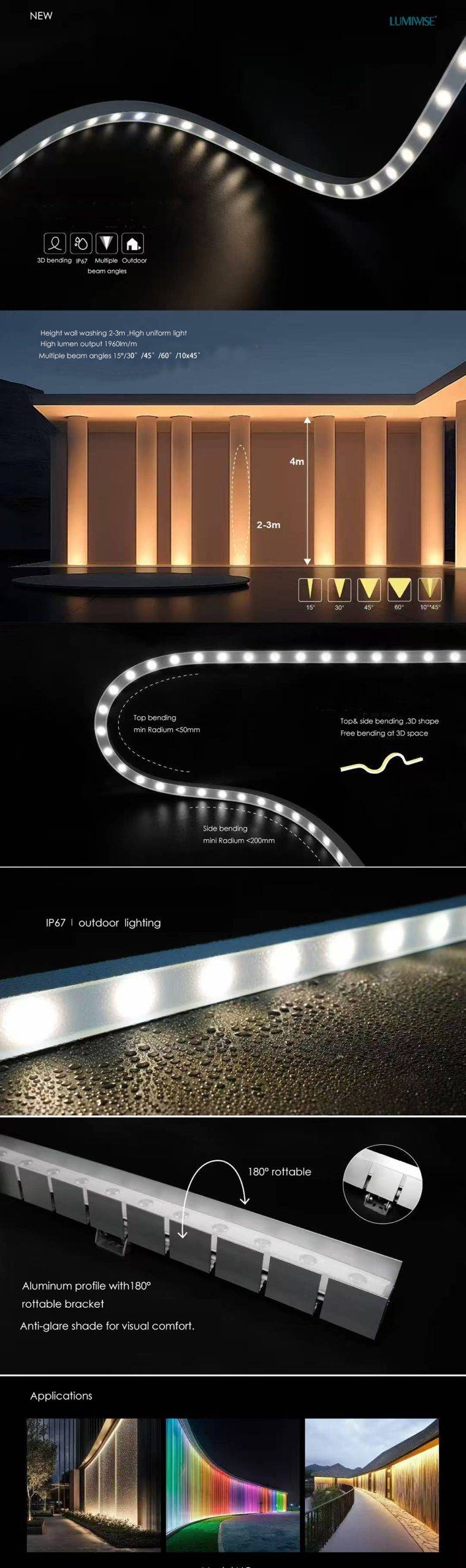

Optico Neon 22 is expertly crafted for uniform and precise illumination of curved surfaces.
Featuring an IP67 rating, the robust, Silicone Encapsulated luminaire is suitable for both indoor and outdoor environments. Equipped with advanced dual-bending capabilities and optic lenses available in various beam angles, Optico Neon 22 ensures consistent illumination without an excessive light spill.
Designed to complement a range of architectural styles, it is available in both grey and white body colours, blending seamlessly with any design aesthetic while offering superior functionality and style.
| Model No. | NS1010B/C-SW-150 | NS1010B/C-TW-150 | NS1010B/C-RGB-150 |
| Power | 10W/m | 15W/m | 24W/m |
| CCT/Color | 1800K~6500K | 3000K-6000K | RGB |
| Lumen output (4000K) | 1200Lm/m CRI80+ | 1100Lm/m CRI80+ | 400Lm/m RGB |
| 1050Lm/m CRI90+ | 940Lm/m CRI90+ | ||
| 960Lm/m CRI95+ | 850Lm/m CRI95+ | ||
| MAXRUN | 5m | 5m | 5m |
| LEDs/m | 42 3030LEDs/m | 2016 280LEDs/m | 4040 42LEDs/m |
| Cut Length | 50mm | ||
| CRI(White) | CRI80+~95+ | CRI80+~95+ | / |
| Voltage | 24V DC | ||
| Dimmable | Yes (PWM, DALI, 0/1-10V, Triac) | ||
| IP Rating | IP67 | ||
| Ambient temp. | -35°C ~ 45°C | ||
| Beam Angle | 120°/160° | ||
| Strip length/reel | 0.5m ~ 50m | ||
| Lifespan | 50,000Hrs | ||
