Luminena Pro light matchs any interior space thanks to the architectural rectangular design together with its opalµprismatic opics and ultra easy connection design
Key Features:
- 1.2mm thickness aluminum housing with die-casting aluminum end cap
- Rectangular design with 60mm width and 80mm height
- PMMA conical microprismatic diffuser achieved glare control perfectly
- Length options: 1200mm, 1500mm, 3000mm and customized sizes
- Colour temperatures: 3000K, 4000K, 5000K, 27000-6500K tunable white
- Available in 2&3CCT selectable
- Wide range of colours: White/Black/Silver/Others
- CRI>90 as standard
- High efficacy of up to 150lm/W to achieve energy saving
- Warranty: 5 years warranty with L90 50’000hs.

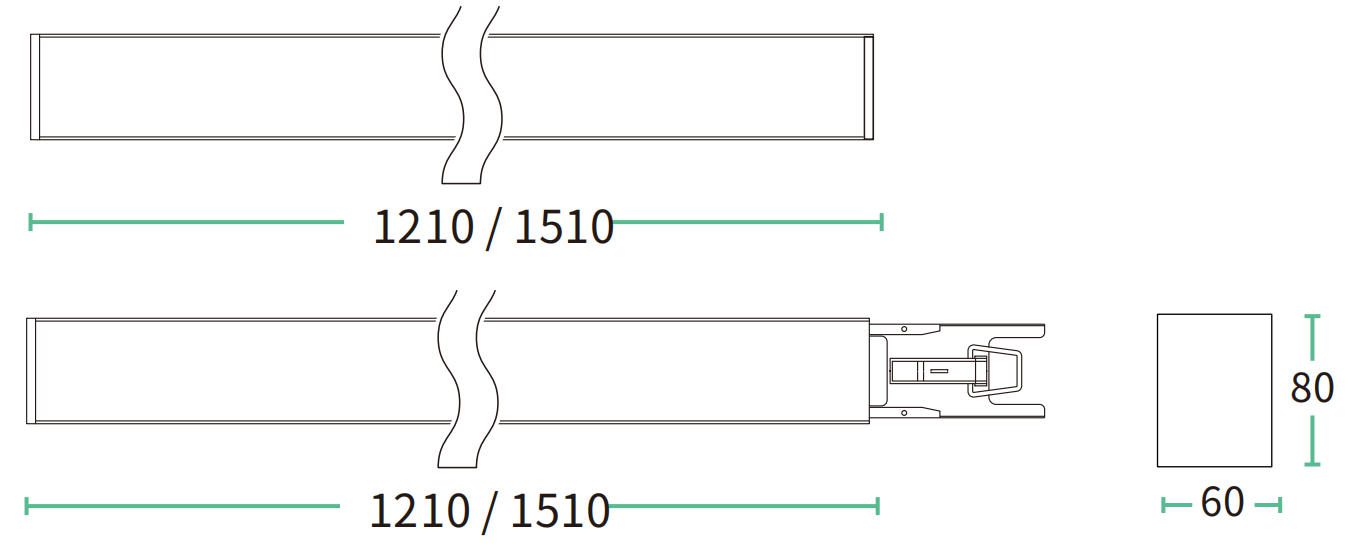

Dimension:
Luminena Pro Linear Light – Single – Surface Mounted – Direct Lighting
| Model | L1200mm | L1500mm | L3000mm | |
| General | Item Code | LN6080112001S | LN6080115001S | LN6080130001S |
| Material | Aluminum Housing+PMMA Diffuser | |||
| Finish | White(RAL9016), Black(RAL9005), Grey(RAL9007), Others | |||
| Electrical | Lumen | 3200lm | 4000lm | 8000lm |
| Watt | 22W | 27W | 55W | |
| Light Efficacy | 140-150lm/W | |||
| Input Voltage | AC220-240V | |||
| Frequency | 50/60Hz | |||
| THD | <20% | |||
| Optical | CCT | 3000K/4000K/5000K Fixed CCT; 2&3CCT Selectable; 2700K-6500K Tunable White | ||
| Light Source | SMD2835 | |||
| CRI | >90Ra as Standard | |||
| Beam Angle | 90° Down with Microprismatic Diffuser; 120° Down with Opal Diffuser | |||
| SDCM | <3 | |||
| Durability | Lifespan | >50,000H(L90,Tc＝55°C) | ||
| Warranty | 5 Years | |||
| Operating Temperature | 一20°C ~ +40°C | |||
| IP Protection | IP20 | |||
| IK Protection | IK02 | |||
| Function | Dimmable | No dimming/DALI as standard; 0/1-10V & Triac & DT8 Available on Request | ||
| Emergency | 5W@3H as Standard, Available on Request | |||
| Sensor | Motion&Daylight Sensor, Available on Request | |||
| Standard | Test Report | IES; LM79; LM80; TM21; ISTMT; EMC; IEC60598; AS/NZS 60598 | ||
| Certificate | CE; RoHS; UKCA; SAA | |||
