Luminena Pro light matchs any interior space thanks to innovative optics design lens with grille louvre for UGR<19 ,three different lighting distribution ,60° ，90° ， 25° double asymtrical and Asymetrial .Track Mounted with rail 3 Phase for flexibility to adjust luminaires .It is widely applied for retail ,supermarket or other interior lighting.
Key Features:
1.2mm thickness aluminum housing with extrusion aluminum
lighting distribution ,60° ，90° ， 25° double asymtrical and Asymetrial
High efficiency up to 160lm/W
Length options: 600mm, 1200mm, 1500mm and customized sizes
Colour temperatures: 3000K, 4000K, 5000K
Available in 2&3CCT selectable
Wide range of colours: White/Black/Silver/Others
CRI>90 as standard
Warranty: 5 years warranty with L90 50’000hs.

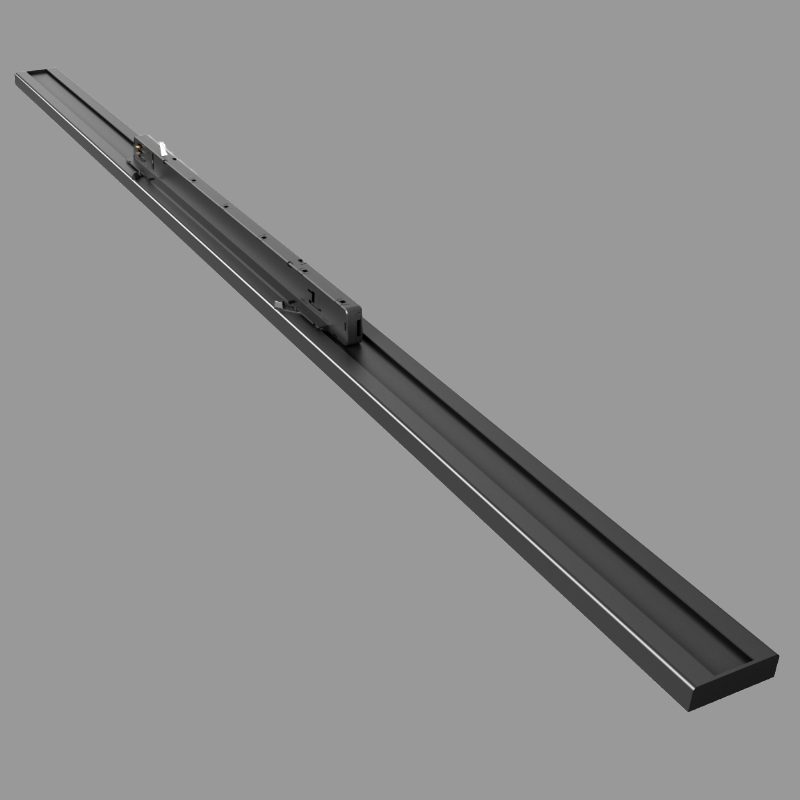

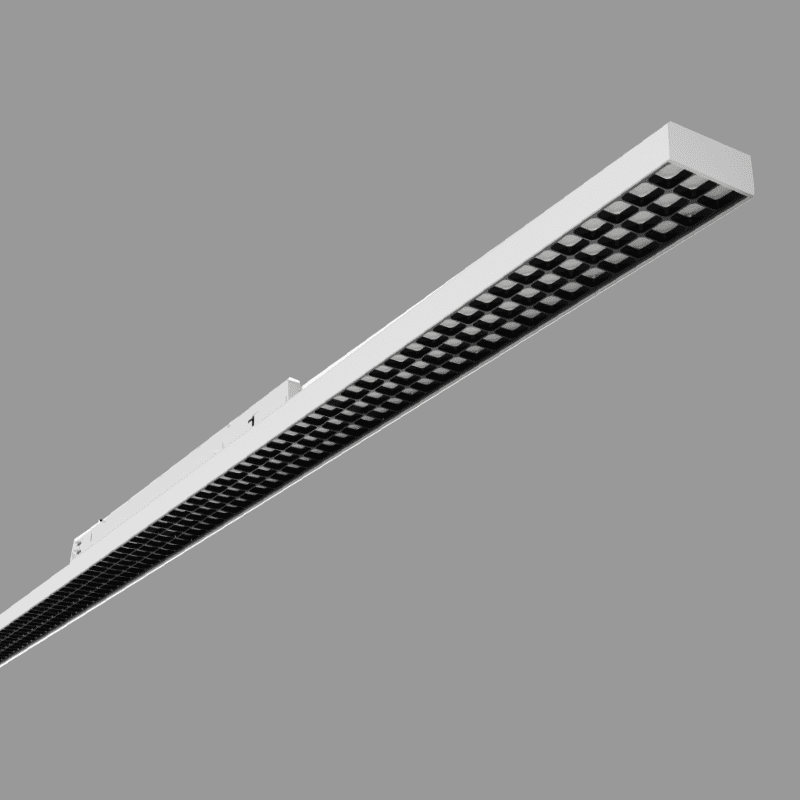

Luminena track Linear Light – Single – track Mounted – Direct Lighting UGR<19
| Model | L599mm | L1193mm | L1490mm | |
| General | Item Code | LN6002001S | LN120011401S | LN15005001S |
| Material | Aluminum Housing+PMMA Diffuser+Black glare control louvre | |||
| Finish | White(RAL9016), Black(RAL9005), Grey(RAL9007), Others | |||
| Electrical | Lumen | 3200lm | 6400lm | 8000lm |
| Watt | 20W | 40W | 50W | |
| Light Efficacy | 160lm/W | |||
| Input Voltage | AC220-240V | |||
| Frequency | 50/60Hz | |||
| THD | <20% | |||
| Optical | CCT | 3000K/4000K/5000K Fixed CCT; | ||
| Light Source | SMD2835 | |||
| CRI | >90Ra as Standard | |||
| Beam Angle | 60° ，90° ， 25° double asymtrical and Asymetrial | |||
| SDCM | <3 | |||
| Durability | Lifespan | >50,000H(L90,Tc＝55°C) | ||
| Warranty | 5 Years | |||
| Operating Temperature | 一20°C ~ +40°C | |||
| IP Protection | IP20 | |||
| IK Protection | IK02 | |||
| Function | Dimmable | No dimming/DALI as standard on Request | ||
| Emergency | / | |||
| Sensor | / | |||
| Standard | Test Report | IES; LM79; LM80; TM21; ISTMT; EMC; IEC60598; AS/NZS 60598 | ||
| Certificate | CE; RoHS; UKCA; SAA | |||
Applications:
