LED Flexible Sheet Panel Single Color

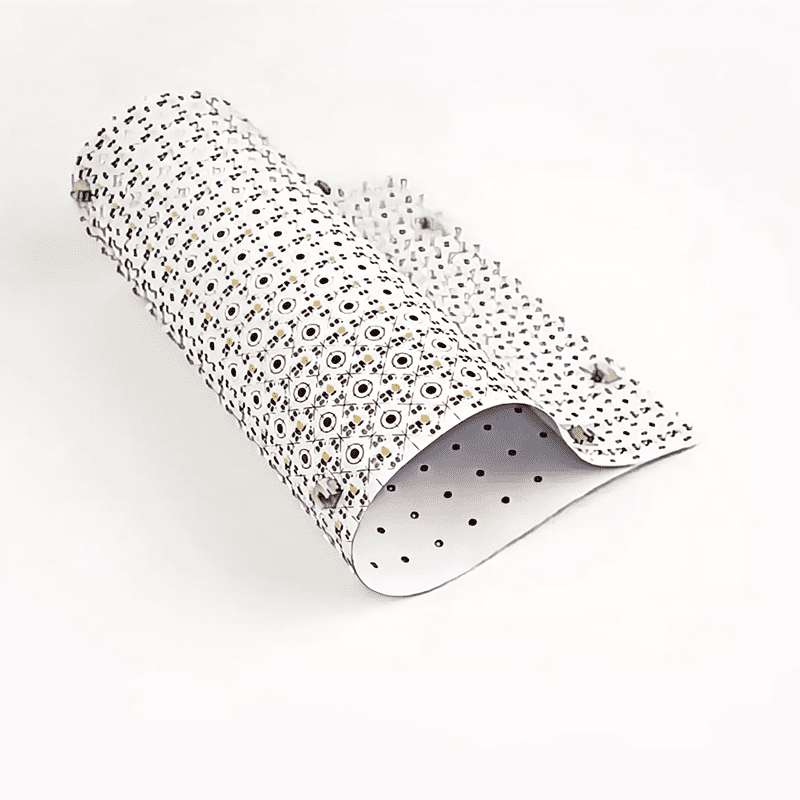

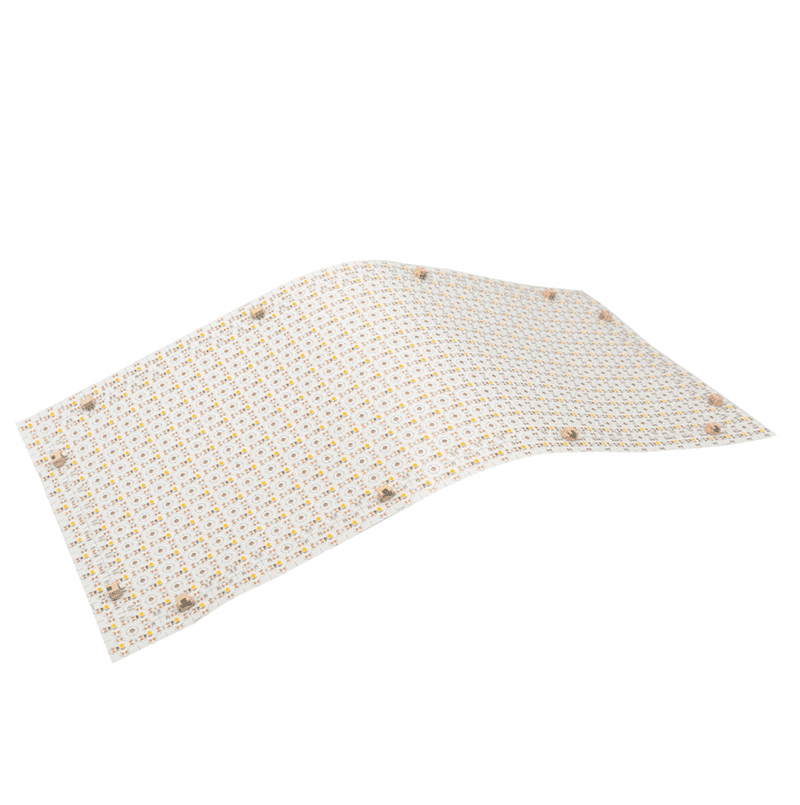

The Flexi Panel range consists of ultra-thin, flexible LED light sheets designed for direct adhesion to flat or curved surfaces. These panels offer a variety of lighting options including Single Color, Dynamic White, RGB/W, and Pixel control, enabling customisable illumination, and can be cut to desired shapes, maximising design and application versatility.
LED Flexi Sheet Panel Range – Single Color-420 -24V DC
Technical Date:
| Model No. | B420-2835-12W-24VDC | B420-2835-20W-24VDC | B420-2835-30W-24VDC |
| Power | 12W/m | 20W/m | 30W/m |
| CCT/Color | 2700k,3000k,4000k | 2700k,3000k,4000k | 2700k,3000k,4000k |
| Lumen output (4000K) | 1200Lm/m CRI80+ | 1800Lm/m CRI80+ | 2700-3300lm |
| 1050Lm/m CRI90+ | 2100Lm/m CRI90+ | ||
| 960Lm/m CRI95+ | 2300Lm/m CRI95+ | ||
| Size | 503*233.33mm | 503*233.33mm | 503*233.33mm |
| LEDs/m | 2835 420LEDs/m | 2835 420LEDs/m | 2835 420LEDs/m |
| Cut Length | 16.67mmx16.67mm | ||
| CRI(White) | CRI80+~95+ | CRI80+~95+ | / |
| Voltage | 24V DC | ||
| Dimmable | Yes (PWM, DALI, 0/1-10V, Triac) | ||
| IP Rating | IP20/IP54 | ||
| Ambient temp. | -35°C ~ 45°C | ||
| Beam Angle | 120°/160° | ||
| Strip length/reel | 0.5m ~ 50m | ||
| Lifespan | 50,000Hrs | ||
