Lumilena Pro light recessed matchs any interior space thanks to the architectural rectangular design together with its opalµprismatic opics and ultra easy connection design
Experience the effectiveness and near-invisibility of our recessed LED linear lights, which seamlessly blend into the ceiling through their unique mounting method.
By opting for this installation approach, these lights provide a serene and uniform ceiling appearance, accompanied by a pleasant and evenly distributed lighting effect.
Our portfolio of LED recessed linear lights combines Insert modular design with aluminum extusion housing,thanks to this design, it is easier for recessed installation ,especially when you need to continuous linear lighting
With our recessed LED linear lights, you can create an environment that exudes sophistication and elegance while maintaining a sleek and uncluttered ceiling aesthetic. Enjoy the benefits of discreet lighting that combines form and function, bringing a perfect balance of style and efficiency to your space.
Key Features:
- 1.5mm thickness aluminum housing with die-casting aluminum end cap

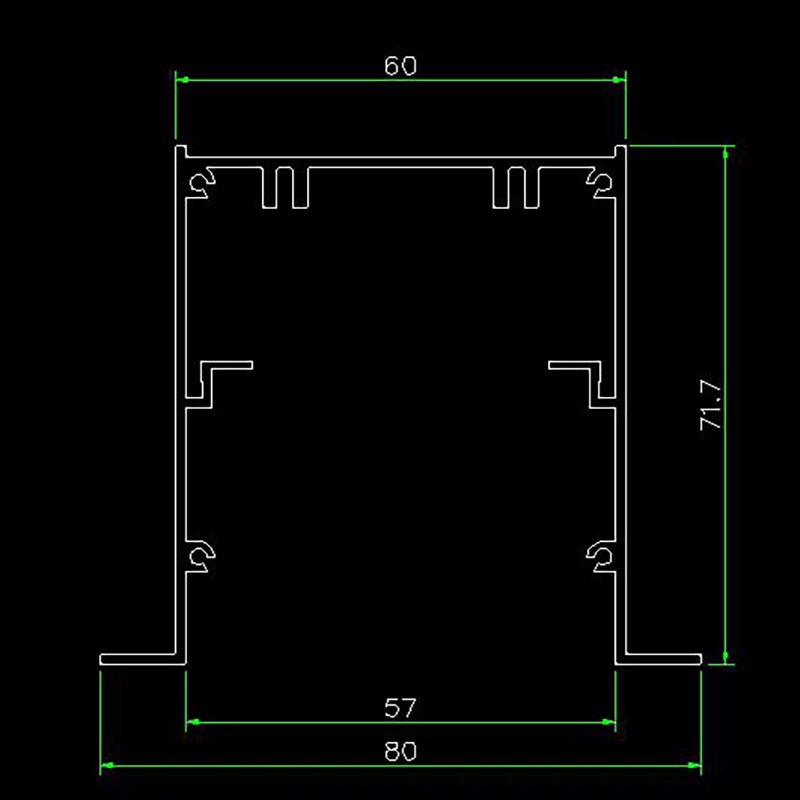

- Rectangular design with 60mm width and 80mm height
- PMMA conical microprismatic diffuser achieved glare control perfectly
- Length options: 1200mm, 1500mm, 3000mm and customized sizes
- Colour temperatures: 3000K, 4000K, 5000K, 27000-6500K tunable white
- Available in 2&3CCT selectable
- Wide range of colours: White/Black/Silver/Others
- CRI>90 as standard
- High efficacy of up to 150lm/W to achieve energy saving
- Warranty: 5 years warranty with L90 50’000hs.
Technical Datas
| Model | L1200mm | L1500mm | L3000mm | |
| General | Item Code | LN6080112001CR | LN6080115001CR | LN6080130001CR |
| Material | Aluminum Housing+PMMA Diffuser | |||
| Finish | White(RAL9016), Black(RAL9005), Grey(RAL9007), Others | |||
| Electrical | Lumen | 3200lm | 4000lm | 8000lm |
| Watt | 22W | 27W | 55W | |
| Light Efficacy | 140-150lm/W | |||
| Input Voltage | AC220-240V | |||
| Frequency | 50/60Hz | |||
| THD | <20% | |||
| Optical | CCT | 3000K/4000K/5000K Fixed CCT; 2&3CCT Selectable; 2700K-6500K Tunable White | ||
| Light Source | SMD2835 | |||
| CRI | >90Ra as Standard | |||
| Beam Angle | 90° Down with Microprismatic Diffuser; 120° Down with Opal Diffuser | |||
| SDCM | <3 | |||
| Durability | Lifespan | >50,000H(L90,Tc＝55°C) | ||
| Warranty | 5 Years | |||
| Operating Temperature | 一20°C ~ +40°C | |||
| IP Protection | IP20 | |||
| IK Protection | IK02 | |||
| Function | Dimmable | No dimming/DALI as standard; 0/1-10V & Triac & DT8 Available on Request | ||
| Emergency | 5W@3H as Standard, Available on Request | |||
| Sensor | Motion&Daylight Sensor, Available on Request | |||
| Standard | Test Report | IES; LM79; LM80; TM21; ISTMT; EMC; IEC60598; AS/NZS 60598 | ||
| Certificate | CE; RoHS; UKCA; SAA | |||

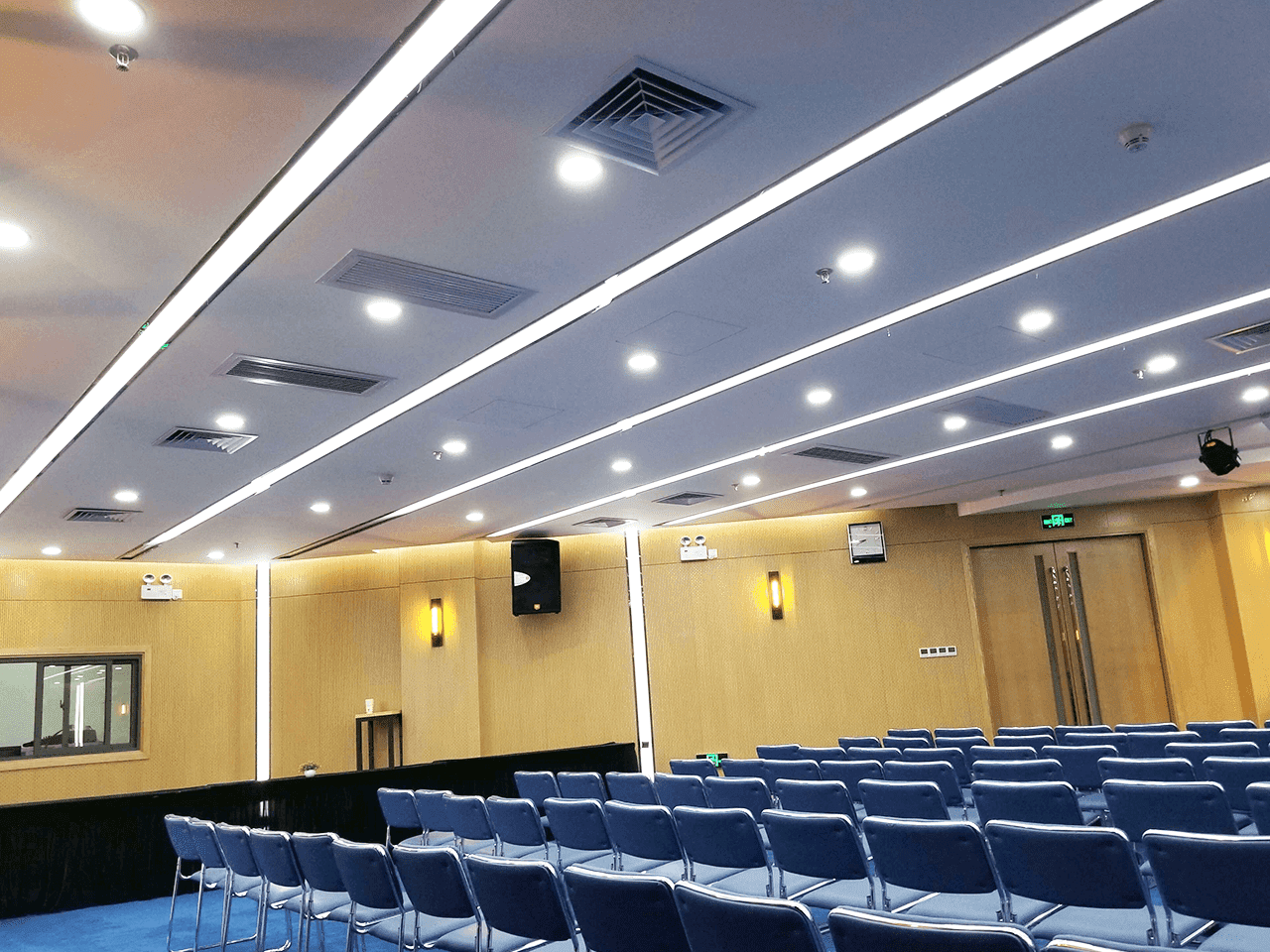

Applications
