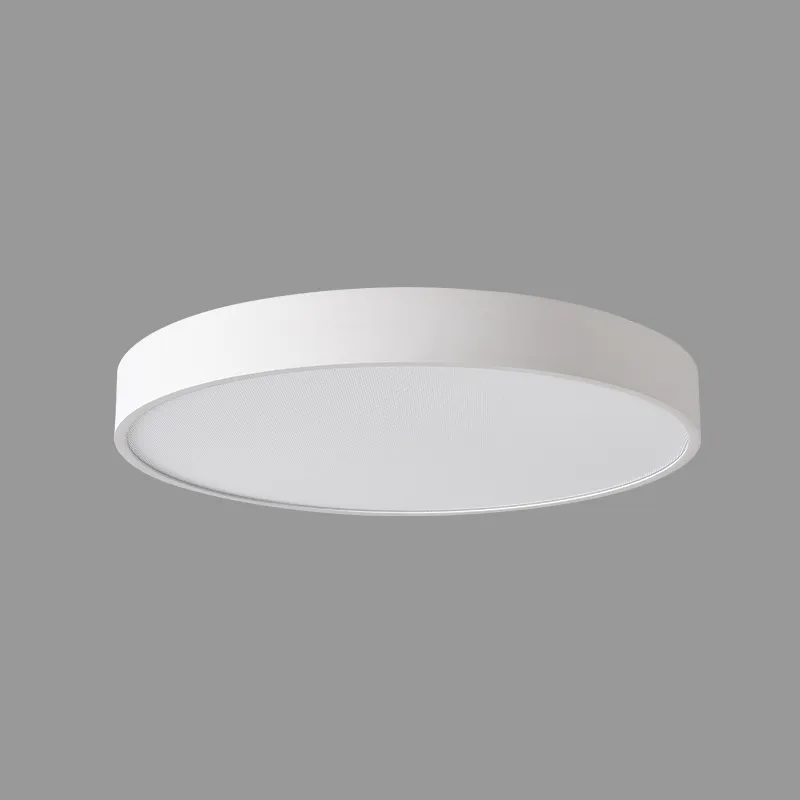

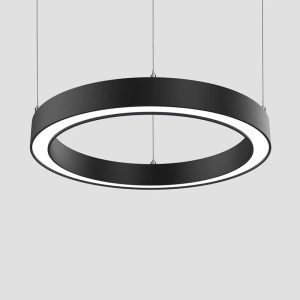

LED Ceiling Light Round
Thanks to our round and slim design ,PL-R series is classic ceiling light to meet wide interior space lighting with different mounting solutions.
There are four sizes of LED Pendant Round light gives the designer freedom to design completely unique architectural lighting systems. Mix the straight linear lighting sections with the curved sections and create unique abstract shapes.
Key Features:
- High efficiency 120-130lm/W
- Ceiling light is with AL6063 aluminum housing
- Opal or Microprismatic diffuser UGR<16
- 100% Direct , 25% indirect& 75% direct

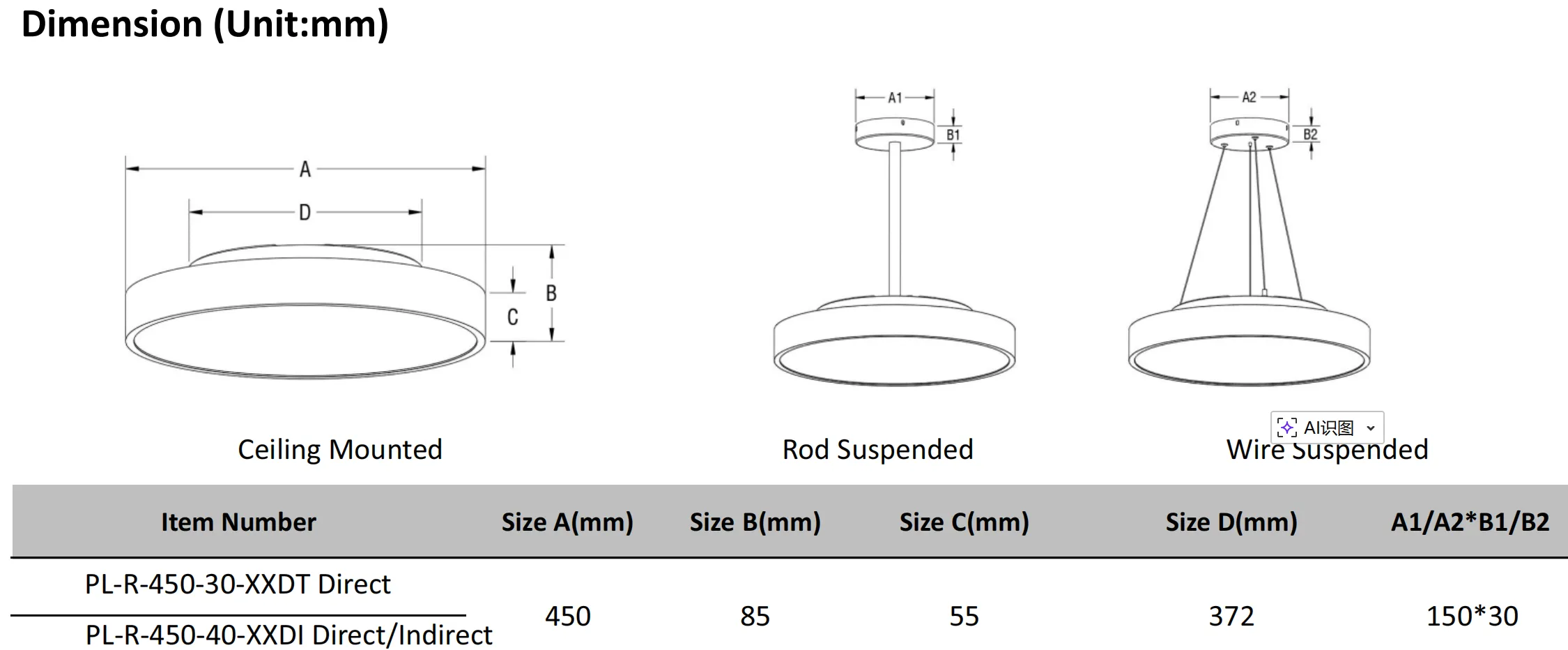

- 350mm,450mm, 600mm, 900mm, 1200mm option
- Color Temperature 3000K 4000K
- 2/3 CCT Dipswitch adjustment or Tunable white
- Indirect and direct light seperated Control
- Multiple Color finishes available

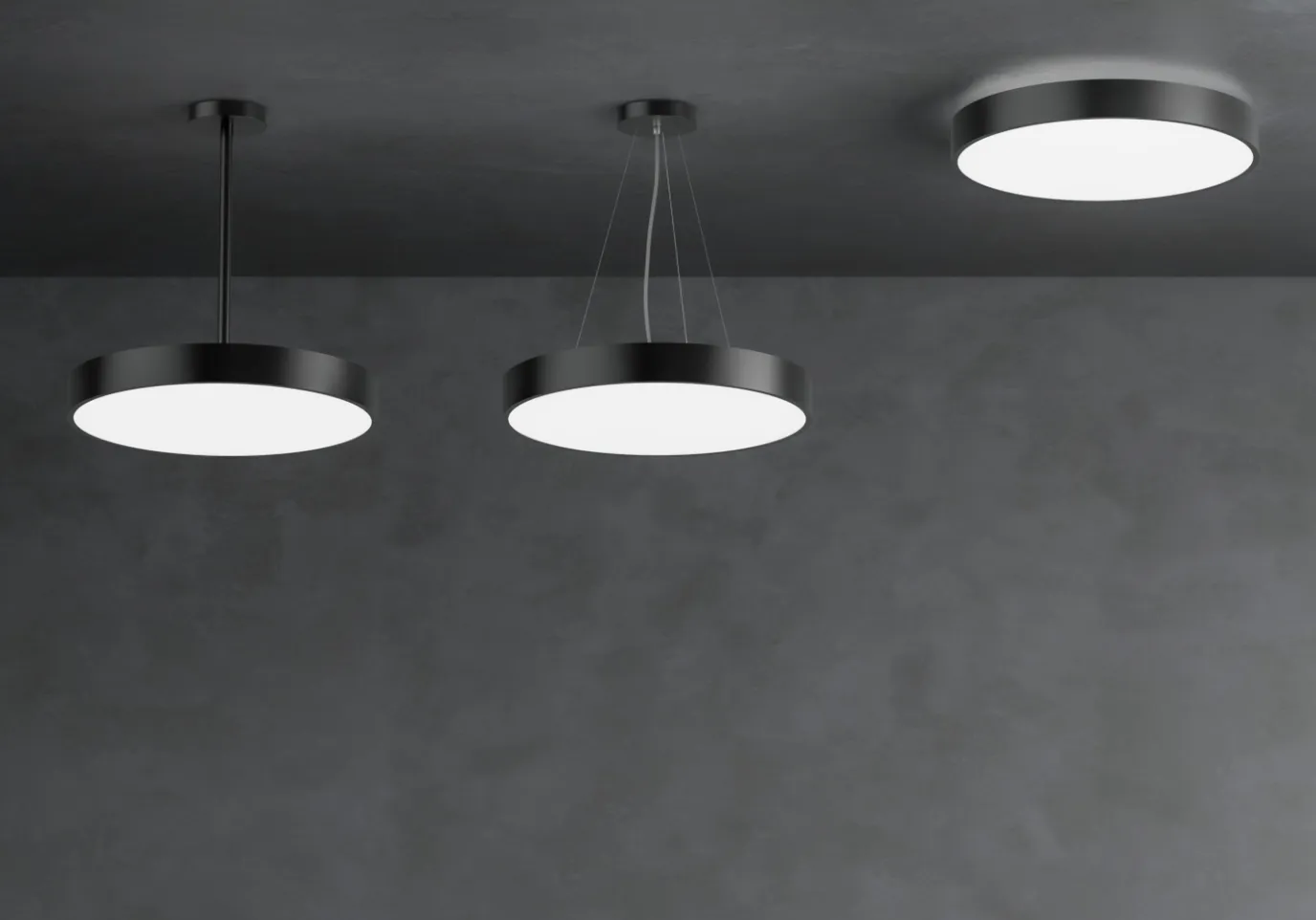

- multiple installation ways available as surface mounted, recessed, Suspended
- 3-5 Year Warranty
Technical Data Sheets
| Product Name | LED Pendant Light | LED Pendant Light | LED Pendant Light | |
| General | Item Code | PL-R-450-30-XXDT | PL-R-600-50-XXDT | PL-R-900-60-XXDT |
| Material | Aluminum Housing+PMMA Microprismatic | |||
| Finish | White(RAL9016), Black(RAL9005) | |||
| Electrical | Lumen | 3000-3500lm | 5000-5500lm | 6500lm |
| Watt | 30W | 50W | 65W | |
| Light Efficacy | 100-130lm/W | |||
| Input Voltage | AC220-240V | |||
| Frequency | 50/60Hz | |||
| THD | <20% | |||
| Optical | CCT | 3000K/4000K/5000K F | ||
| Light Source | SMD2835 | |||
| CRI | >80Ra as Standard | |||
| Beam Angle | 90° Down with Microprismatic Diffuser; 120° Down with Opal Diffuser | |||
| SDCM | <3 | |||
| Durability | Lifespan | >50,000H(L90,Tc＝55°C) | ||
| Warranty | 3-5 Years | |||
| Operating Temperature | 一20°C ~ +40°C | |||
| IP Protection | IP20 | |||
| IK Protection | IK02 | |||
| Function | Dimmable | No dimming/DALI as standard; 0/1-10V & Triac & DT8 Available on Request | ||
| Emergency | 5W@3H as Standard, Available on Request | |||
| Sensor | Motion&Daylight Sensor, Available on Request | |||
| Standard | Test Report | IES; LM79; LM80; TM21; ISTMT; EMC; IEC60598; AS/NZS 60598 | ||

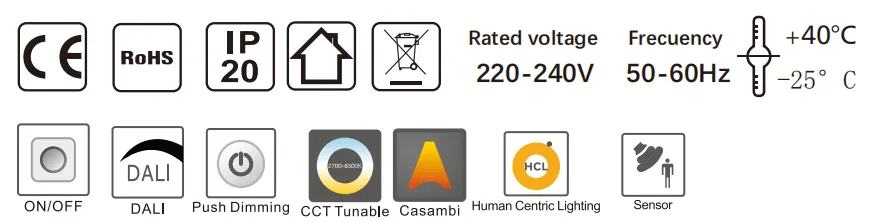

| Certificate | CE; RoHS; UKCA; SAA | |||

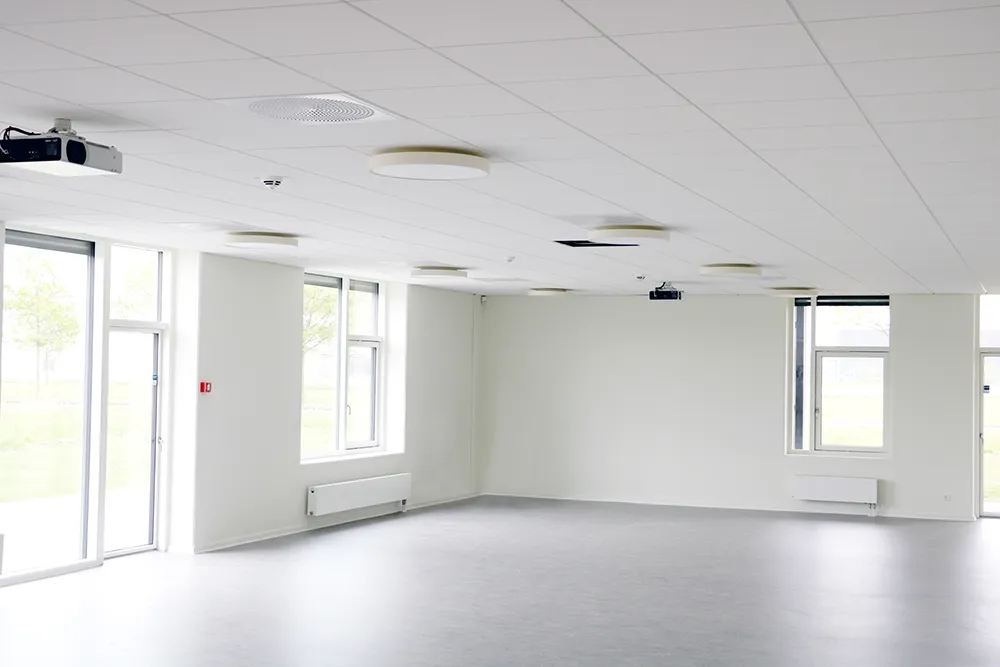

Applications:
