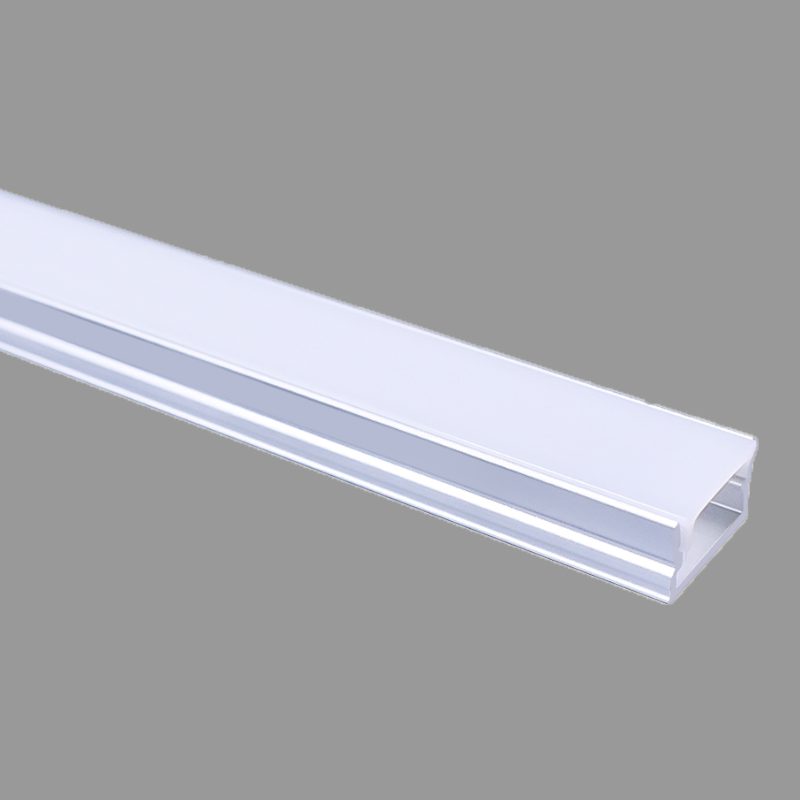

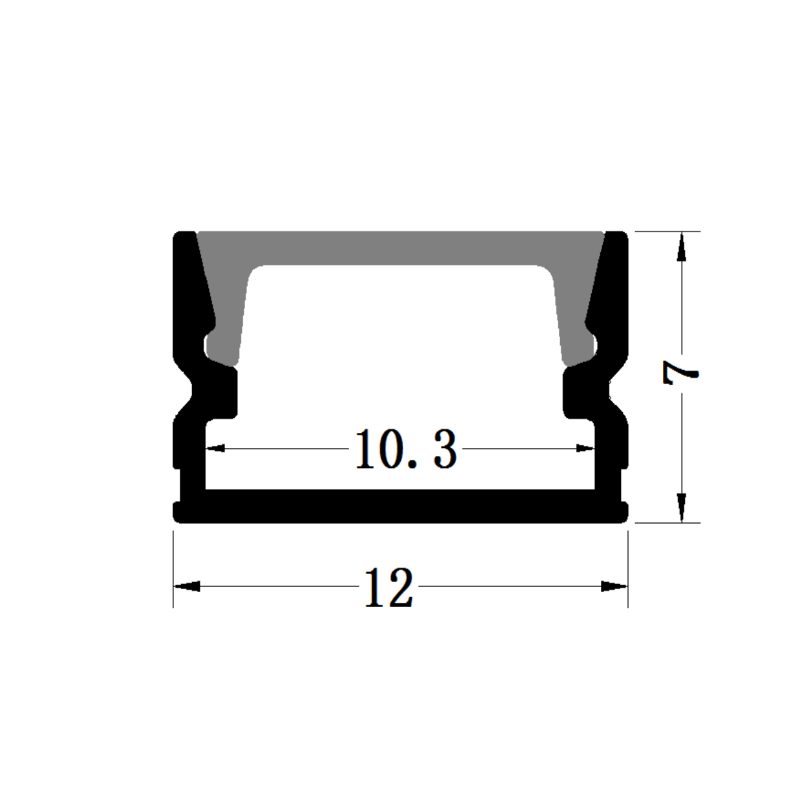

LED Aluminum Profile surface mounted 12x7mm for architectural ,furniture and other decorative
LED aluminum profiles are more than just a housing unit; they are an essential component for professional-grade lighting. Crafted from premium extruded aluminum, they actively draw heat away from the LED strips, significantly increasing their lifespan and maintaining optimal lumen output.
Features:
· Sleek, Modern Design: Creates a clean and integrated appearance.
· Variety of Finishes: Available in standard silver (anodized), black, white, and custom colors.
· Diffuser Options: Opal PC (polycarbonate) for even glow, Clear PC for maximum output, or without diffuser for direct light.
· High-Grade Aluminum: Ensures structural integrity and efficient thermal conductivity.
· Effective Thermal Management: Extends LED lifespan by up to 50%.
· IP-Rated Options: Available with appropriate IP ratings (e.g., IP54, IP65) for dust and moisture resistance when used with end caps.
Installation & Versatility
· Pre-Drillled Holes: Simplifies the mounting process.
· Compatible Mounting Brackets: Includes solutions for surface, recessed, corner, and hanging mounting.
· Easy Snap-On Diffusers: Allows for simple access to the LED strip after installation.
· Standard Lengths & Custom Cutting: Available in standard lengths and easily cut-to-size for a perfect fit.
Technical Specifications
| ltem Type | LED Aluminum Profile with PC Cover 1m 2m 3m 10mm LED Strip Light Profile |
| Model | LM08012 |
| Material | 6063-T5 Aluminum Alloy |
| Finish Treatment | Aluminum Anodized/ White Powder Coating |
| Standard Length | 1Meter, 2Meter, 3Meter ( Customized length is also available） |
| Inside Width For Strip PCB | Up to 5MM PCB |
| Cover Options | Milky 53%, ,frosted 72%, transparent 89% option |
| Installation | Surface Mounting/Ceiling/Trimless recessed |

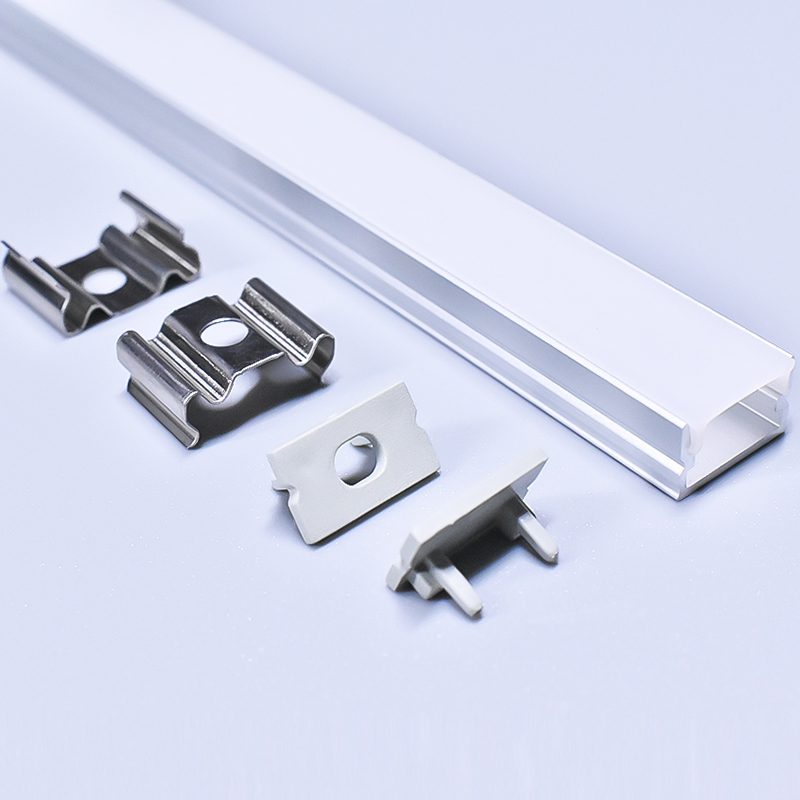

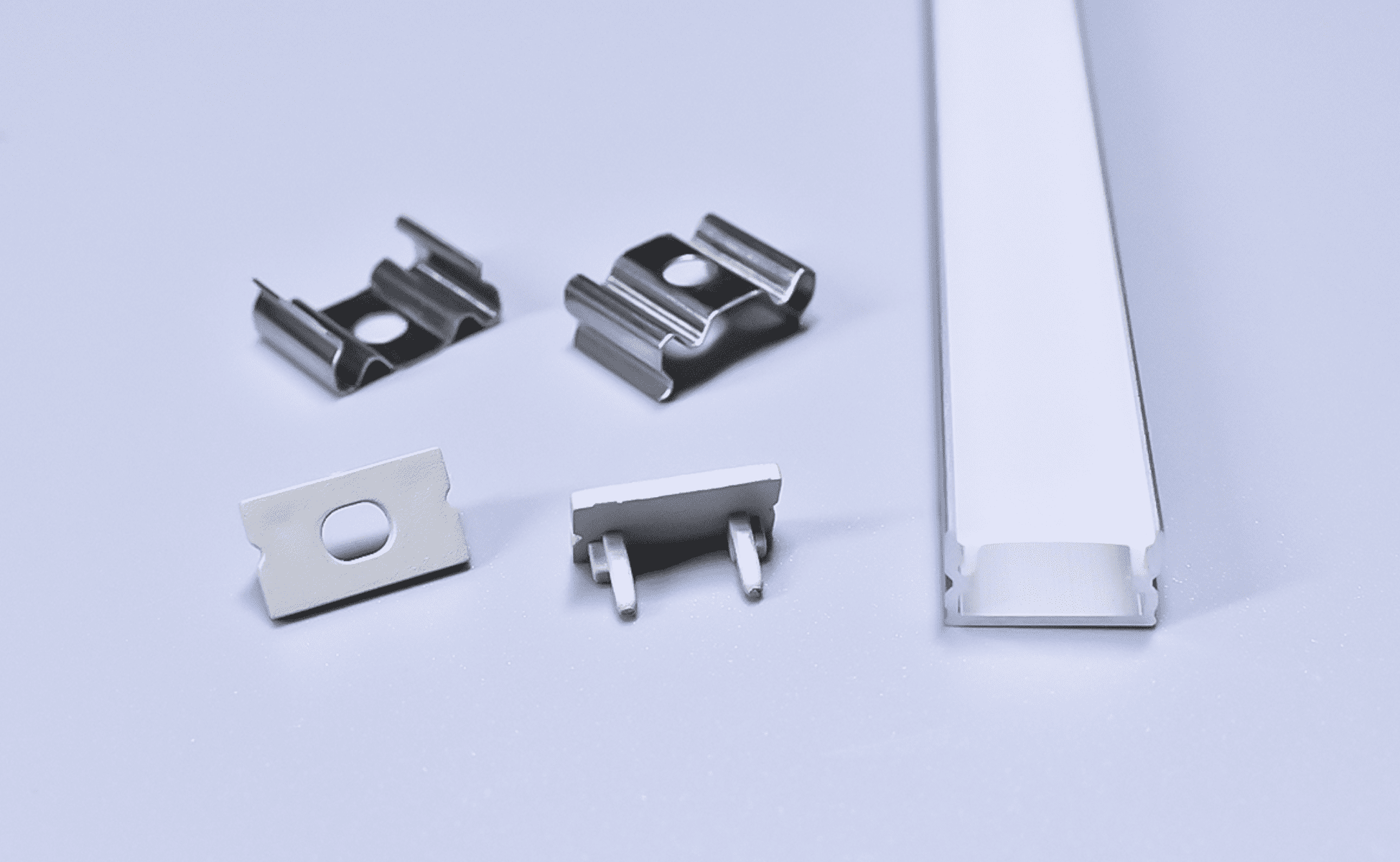

| Accessories | Aluminum Profile+ PC Cover + 2 Plastic End Caps + 2pcs Metal clips |
| Package | Inner PP Bag, Outer 7 layers Carton package |
| Application | Indoor |
Accessories:
Applications
