COB Strip Range Application

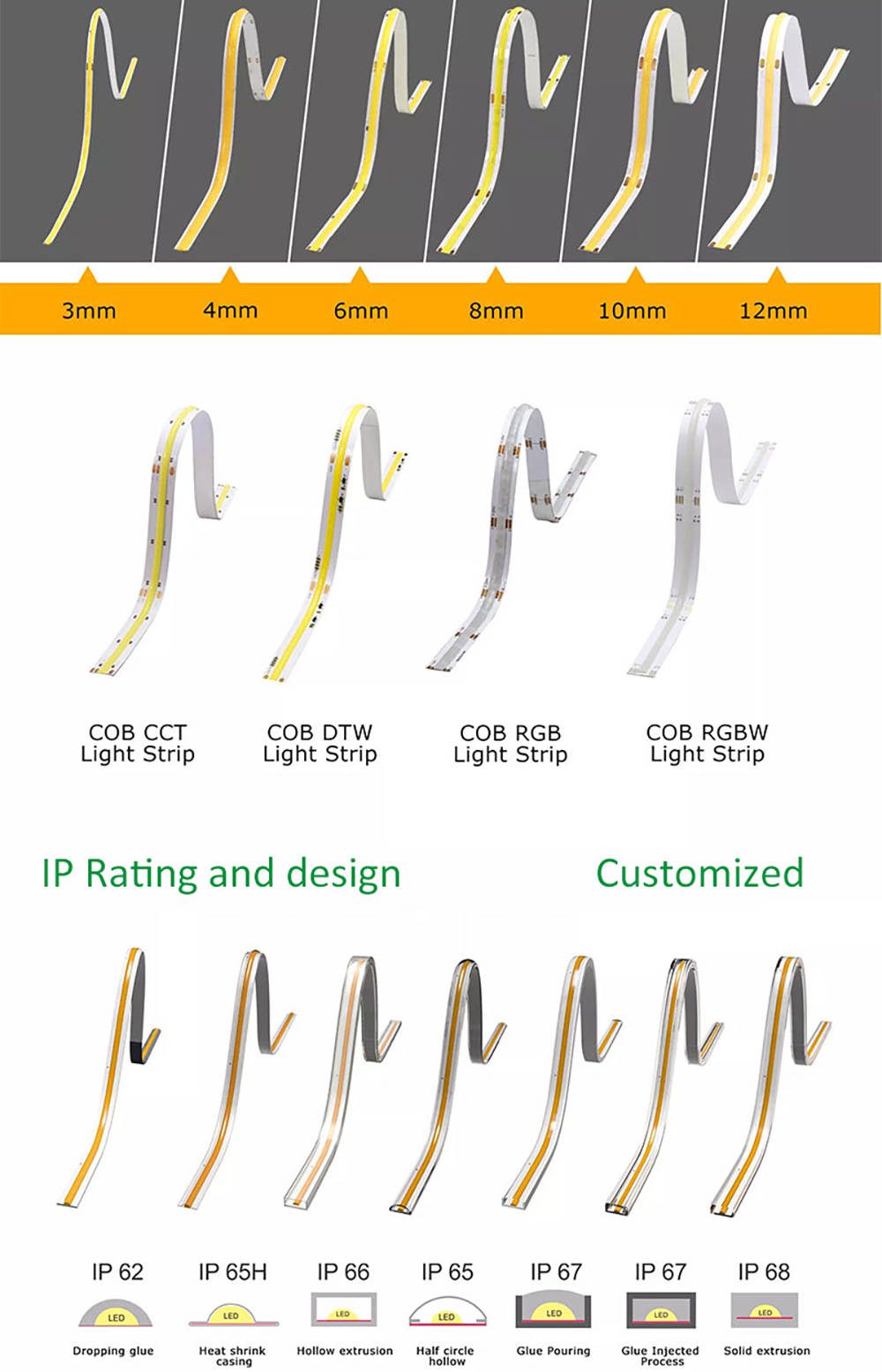

The COB Flexi strip Range is a versatile series of flexible, linear LED light engines designed for diverse interior and exterior applications. Each family offers unique features and is streamlined to ease specification. Available in IP20, IP54, and IP67, the range includes Single Colour, Dynamic White, RGBW, and Pixel options, with a variety of chip counts, wattages, and colour temperatures. COB Flexi strip Range can be seamlessly combined with a selection of Flex Profiles to address any linear lighting application.
COB Flexi strip Range – Single Color– 8mm 24V DC
| Model No. | LM-SWCOBN480-2408-100 |
| Power | 10W/m |
| PCB width | 8mm |
| Lumen output (4000K) | 1000Lm/m CRI 90+ |
| MAXRUN | 5meter |
| Chips/m | COB 480Chips/m |
| Cut Length | 50mm |
| Voltage | 24V DC |
| CCT | 2700~6500K |
| CRI | CRI90+~95+ |
| Dimmable | Yes (PWM, DALI, 0/1-10V, Triac) |
| IP Rating | IP20/IP65/IP67/IP68 |
| Ambient temp. | -35°C ~ 50°C |
| Beam Angle | 180° |
| Strip length/reel | 0.5m ~ 50m |
| Lifespan | 50,000Hrs |
