LED Strip Range Application
The LumenLine features high-CRI LED light engines. With CRI of 98+ and R9 values of 99+, the range offers exceptional colour precision, ideal for high-end retail and hospitality applications. With IP20, IP54, and IP67 options, Lumen Line is suitable for both indoor and outdoor environments. The range offers design flexibility with various chip counts, wattages, and colour options including Single-Colour and Dynamic White, as well as the unique Solo variant with individual LED cutting intervals.
LED Flexi strip Range – Single Color– 8mm 128 -24V DC
| Model No. | LM-SW1202835N480-2408-100 |
| Power | 10W/m |
| PCB width | 8mm |
| Lumen output (4000K) | 1000Lm/m CRI 90+ |
| MAXRUN | 5meter |
| leds/m | 128LEDS/m |
| Cut Length | 50mm |
| Voltage | 24V DC |
| CCT | 2700~6500K |
| CRI | CRI90+~95+ |
| Dimmable | Yes (PWM, DALI, 0/1-10V, Triac) |

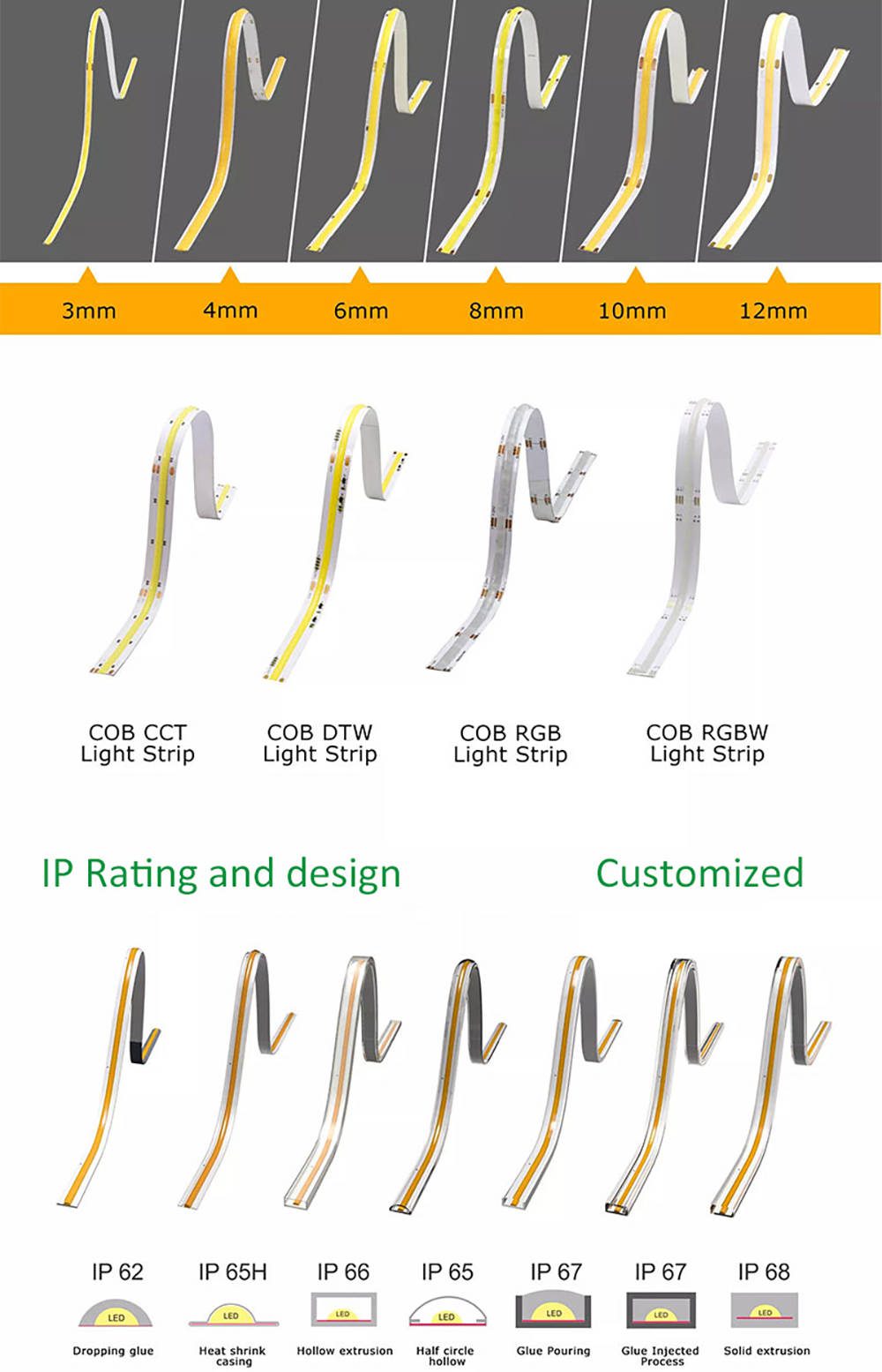

| IP Rating | IP20/IP65/IP67/IP68 |
| Ambient temp. | -35°C ~ 50°C |
| Beam Angle | 180° |
| Strip length/reel | 0.5m ~ 50m |
| Lifespan | 50,000Hrs |
