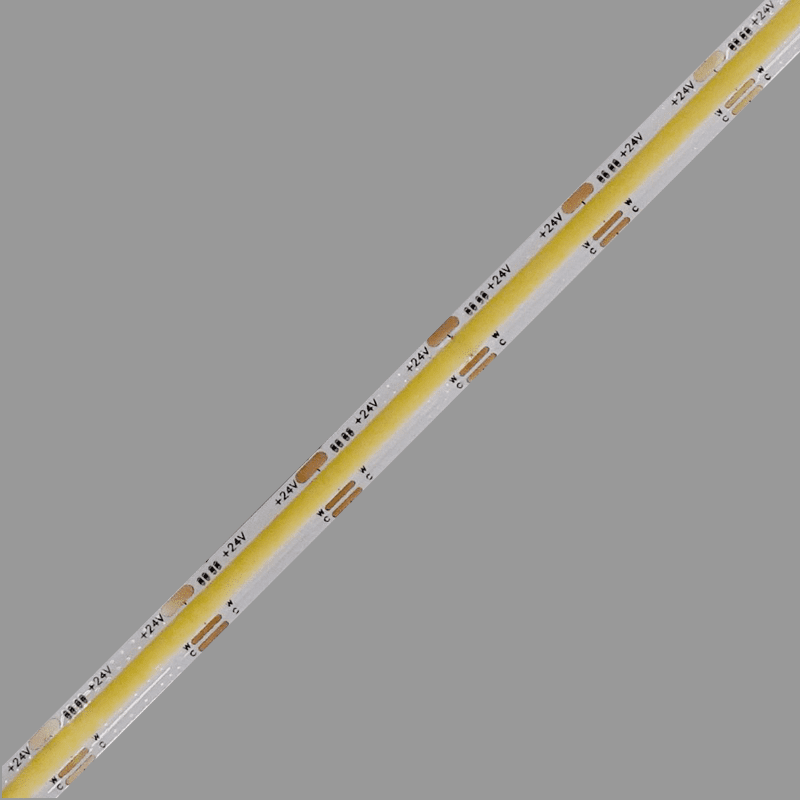

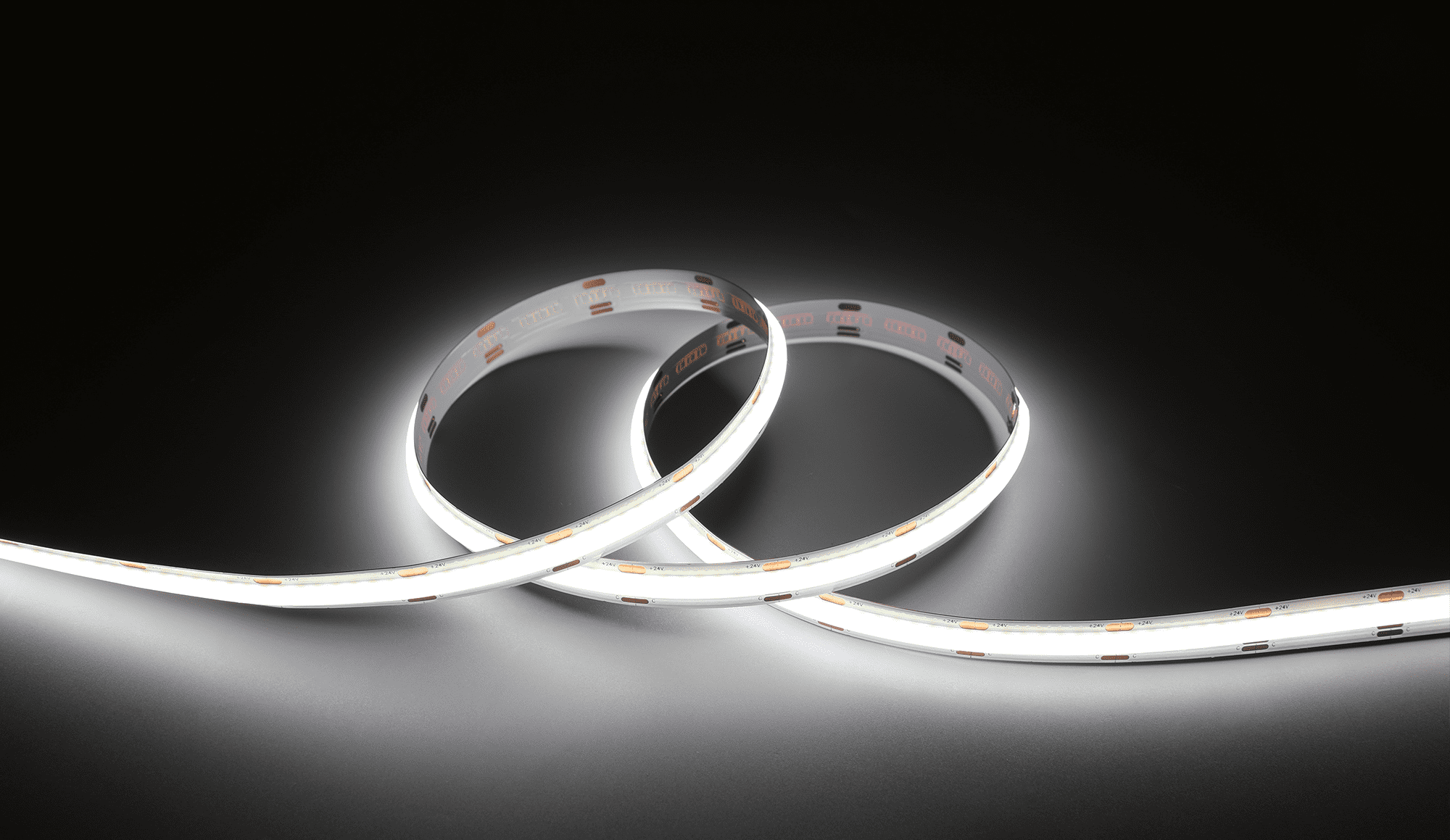

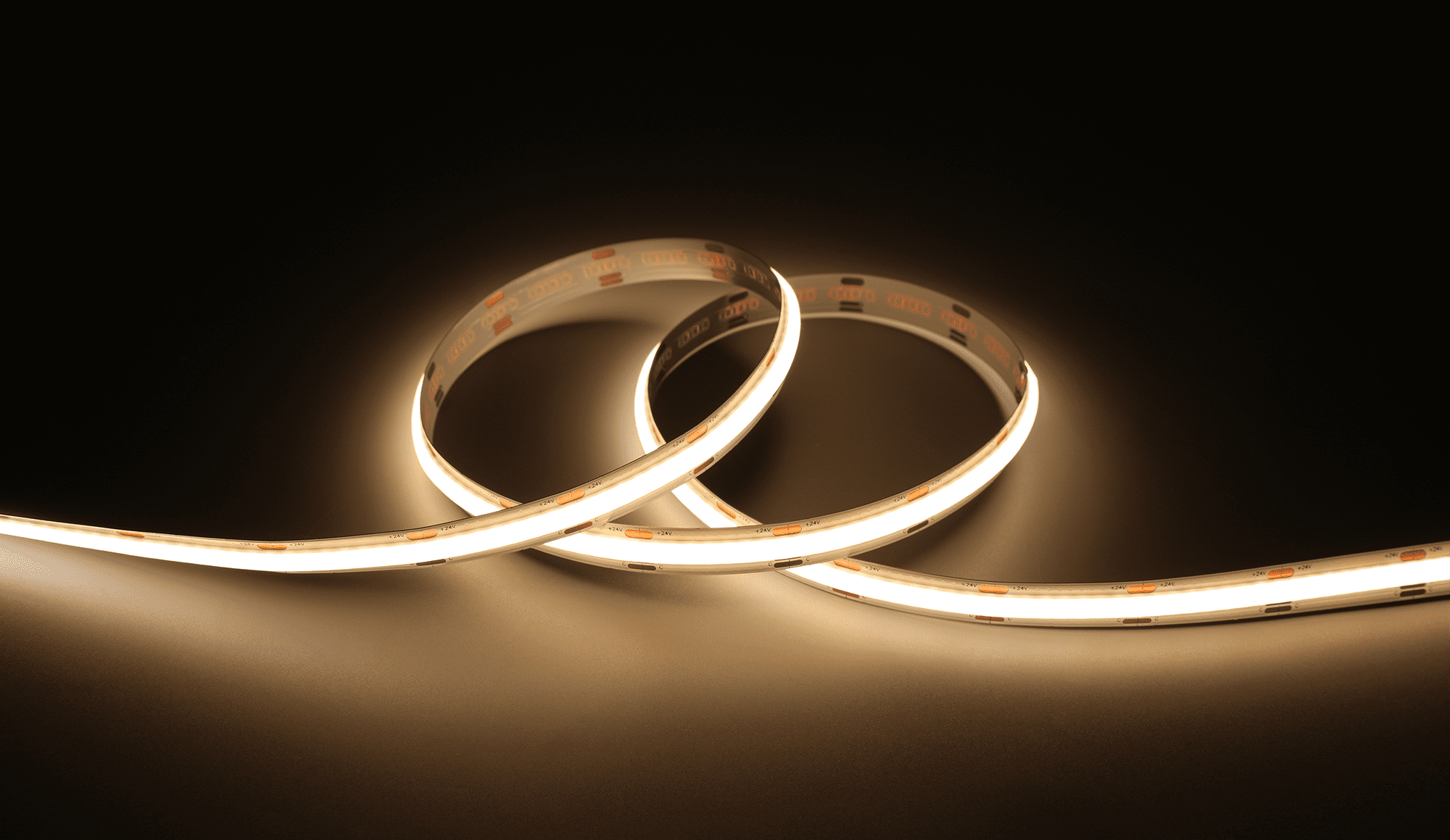

Cobflex Tunable white COB LED strip
The COBflex CCT TW led strip Range is a versatile series of flexible, linear LED light engines designed for diverse interior and exterior applications.
Each family offers unique features and is streamlined to ease specification.
Available in IP20, IP54, and IP67, CCT adjustable range 2700K-6500K
Avariety of chip counts, wattages, and colour temperatures.
COB Flexi strip Range can be seamlessly combined with a selection of Flex Profiles to address any linear lighting application.
Technical data
| Model No. | LM-SWCOBN640-2408-100 |
| Power | 20W/m |
| PCB width | 10mm |
| Lumen output (4000K) | 1000Lm/m CRI 90+ |
| MAXRUN | 5meter |
| Chips/m | COB 640Chips/m |
| Cut Length | 50mm |
| Voltage | 24V DC |
| CCT | 2700~6500K adjustable |
| CRI | CRI90+~95+ |
| Dimmable | Yes (PWM, DALI, 0/1-10V, Triac) |
| IP Rating | IP20/IP65/IP67/IP68 |
| Ambient temp. | -35°C ~ 50°C |
| Beam Angle | 180° |
| Strip length/reel | 0.5m ~ 50m |
| Lifespan | 50,000Hrs |

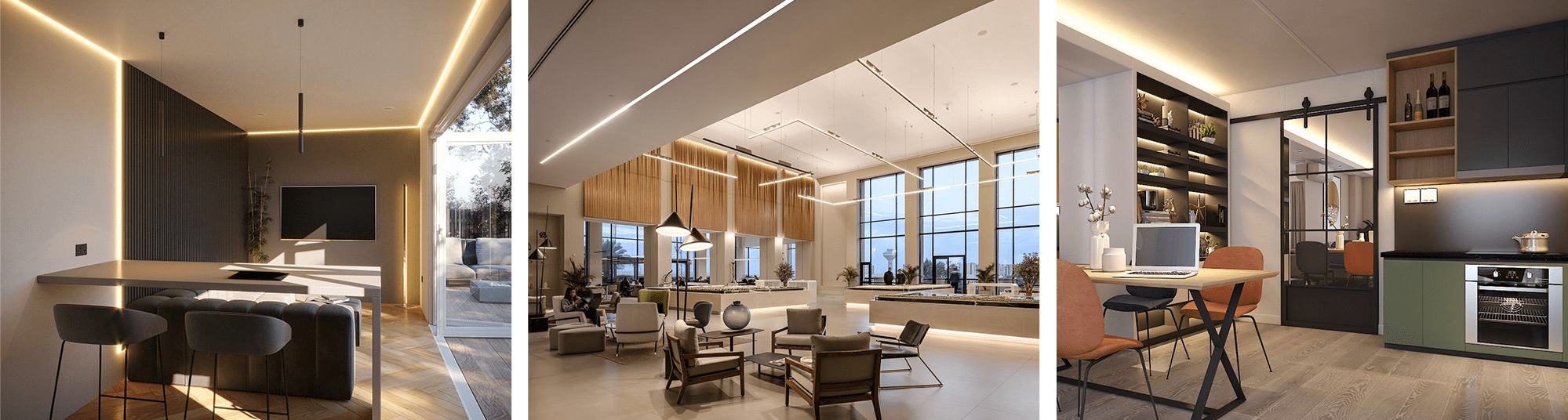

Applications:
