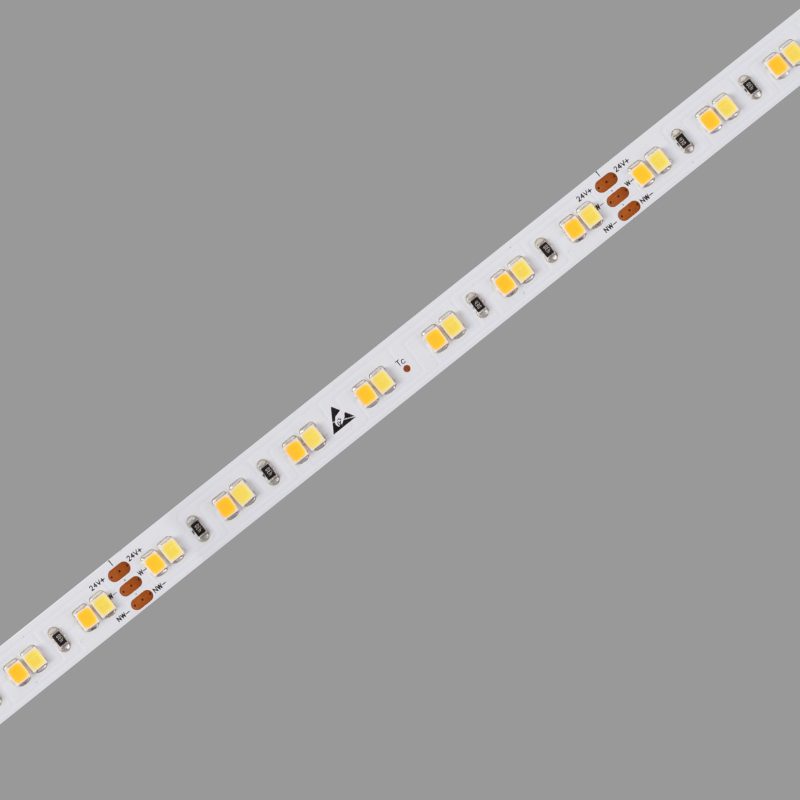

Classic SMD 2835 CCT LED strip 120
The Classic SMD 2835 LED strips features CCT Tunable White LED light engines.
With CRI of 95+ and R9 values of 60+, the range offers exceptional colour precision, ideal for high-end retail residential and hospitality applications.
With IP20, IP54, and IP67 and IP68 options, Lumen Line is suitable for both indoor and outdoor environments.
The range offers design flexibility with various chip counts, wattages, and colour options ,Dynamic White.
Multiple FPC width 10mm for options ,perfectly as light engines for LED aluminum profiles
Classic SMD 2835 CCT LED strip 120
| Model No. | LM120-S2835-CCT-W24-CRI90-IP20-15D-500 |
| Power | 14-20W/m |
| PCB width | 10mm |
| Lumen output (4000K) | 750-2500Lm/m ,CRI 90+ |
| MAXRUN | 5meter |
| leds/m | 120LEDS/m |
| Cut Length | 50mm |
| Voltage | 24V DC |
| CCT | 2700 to 6500K CCT adjustable |
| CRI | CRI90+~95+ |
| Dimmable | Yes (PWM, DALI, 0/1-10V, Triac) |
| IP Rating | IP20/IP65/IP67/IP68 |
| Ambient temp. | -35°C ~ 50°C |
| Beam Angle | 180° |
| Strip length/reel | 0.5m ~ 50m |
| Lifespan | 50,000Hrs |
