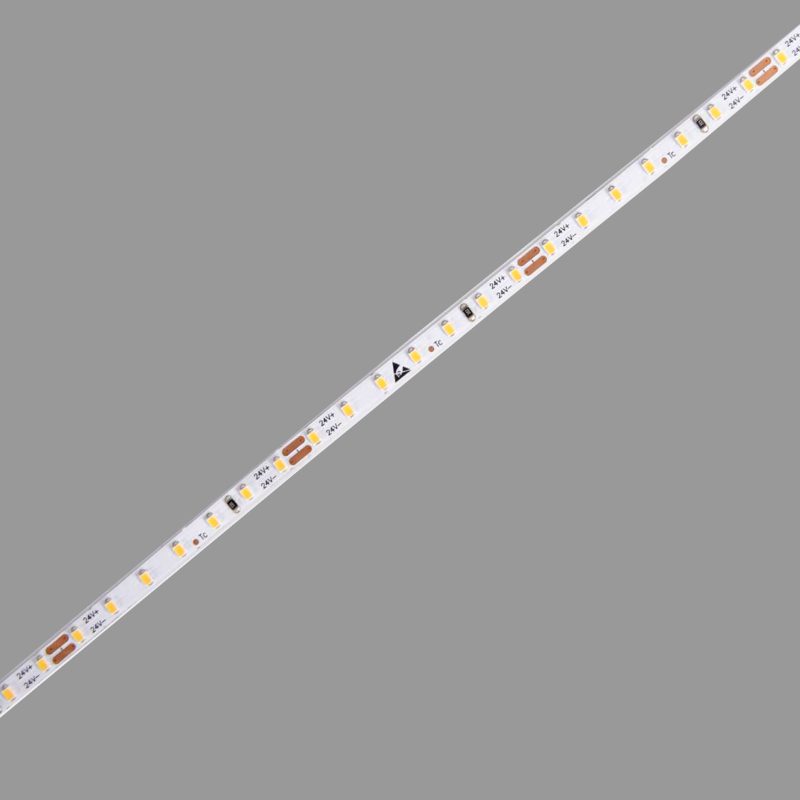

Classic SMD 2216 LED strip slim 4mm
The Classic SMD 2216 LED strip slim 4mm features high efficiency LED light engines.
With CRI of 95+ and R9 values of 60+, the range offers exceptional colour precision, ideal for high-end retail and hospitality applications.
The range offers design flexibility with various chip counts, wattages, and colour options including Single-Colour,Solo variant with individual LED cutting intervals.
Multiple FPC width 4mm for options ,perfectly as light engines for LED aluminum profile at Narrow space.
Technical Specification
| Model No. | LM120-S2216-W27-W24-CRI90-IP20-15D-500 |
| Power | 3W-8W/m |
| PCB width | 4mm |
| Lumen output (4000K) | 240-480Lm/m ,CRI 90+ |
| MAXRUN | 5meter |
| leds/m | 120LEDS/m |
| Cut Length | 50mm |
| Voltage | 24V DC |
| CCT | 2700~6500K |
| CRI | CRI90+~95+ |
| Dimmable | Yes (PWM, DALI, 0/1-10V, Triac) |
| IP Rating | IP20 |
| Ambient temp. | -35°C ~ 50°C |
| Beam Angle | 180° |
| Strip length/reel | 0.5m ~ 50m |
| Lifespan | 50,000Hrs |
