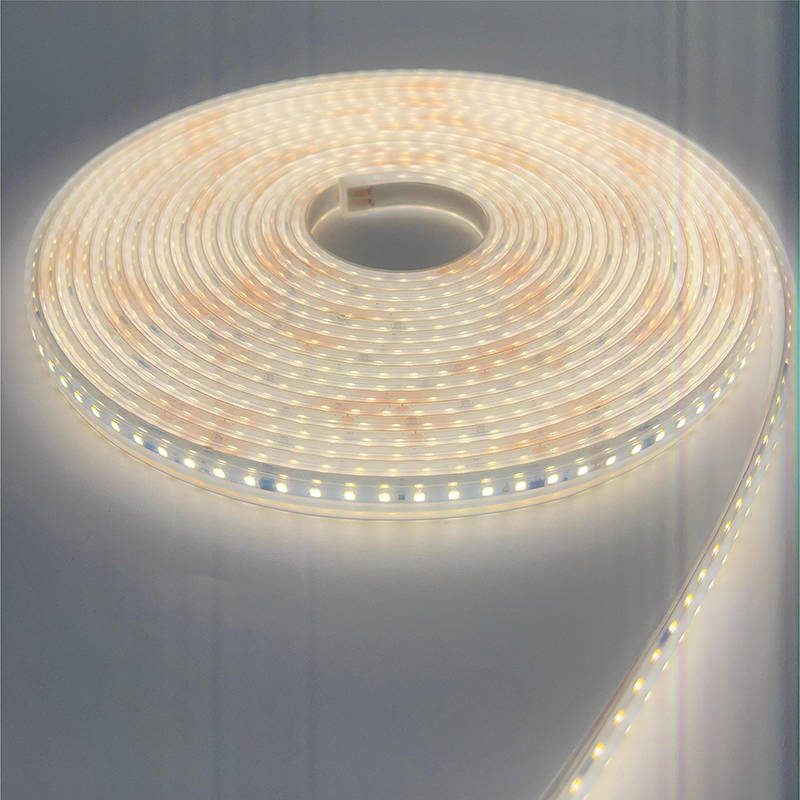

What are Driverless AC LED Strip Lights?
High voltage led strip light is a light strip driven by high voltage. As it is powered by alternating current, it is also called an AC led light strip. Such as AC110V/120V/230V/240V led strip lights.
Traditional high voltage led strip in the market has power supply plug on the beginning to change AC to DC, and the cut unit length usually is 50cm or 100cm.
But Lumiwise ‘s high voltage led strip is put diode rectifier on PCB, not need power supply plug at all, so it sometimes called driverless led strip, and the cut unit length is shorter only 10cm.
| Model | L5000mm | L25000mm | L50000mm | |
| General | Item Code | LN6080112001S | LN6080115001S | LN6080130001S |
| Material | Silicone +PCB | |||
| Finish | Opal or Transparent | |||
| Electrical | Lumen | 3200lm | 4000lm | 8000lm |
| Watt | 22W | 27W | 55W | |
| Light Efficacy | 140-150lm/W | |||
| Input Voltage | AC220-240V | |||
| Frequency | 50/60Hz | |||
| THD | <20% | |||
| Optical | CCT | 3000K/4000K/5000K Fixed CCT; 2&3CCT Selectable; 2700K-6500K Tunable White | ||
| Light Source | SMD2835 | |||
| CRI | >90Ra as Standard | |||
| Beam Angle | 90° Down with Microprismatic Diffuser; 120° Down with Opal Diffuser | |||
| SDCM | <3 | |||
| Durability | Lifespan | >50,000H(L90,Tc＝55°C) | ||
| Warranty | 5 Years | |||
| Operating Temperature | 一20°C ~ +40°C | |||
| IP Protection | IP67 | |||
| IK Protection | IK02 | |||
| Function | Dimmable | Dimmable | ||
| Emergency | 5W@3H as Standard, Available on Request | |||
| Sensor | Motion&Daylight Sensor, Available on Request | |||
| Standard | Test Report | IES; LM79; LM80; TM21; ISTMT; EMC; IEC60598; AS/NZS 60598 | ||
| Certificate | CE; RoHS; UKCA; SAA | |||
