-4 wire 3-phase track adapter 350° flexible horizaontal rotation -Beam angle: 60º/90º/D20º (Double Asymmetric) -On/Off, DALI and 1-10V dimming driver for option -Wattage Adjustable dipswitch: 44W, 52W, 60W,68W

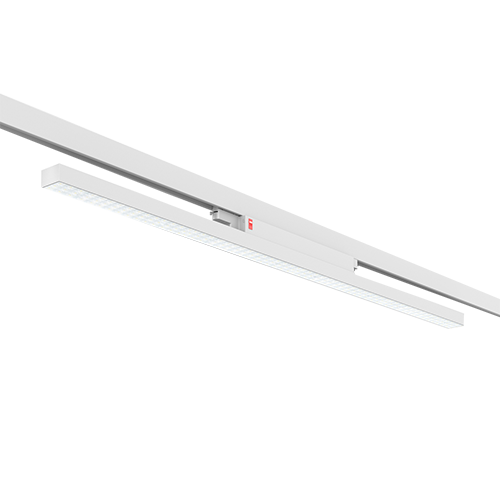

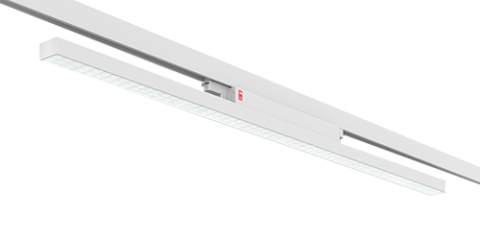

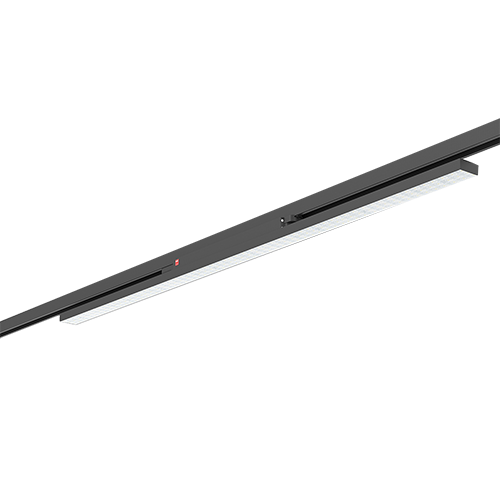

T.LINE Track Linear consists of a series of lights that run on a certain track structure. With universal track adapter, it can match existing European 3-circuit track rail brands, such as Eutrac, Global and Staff.
- High luminous intensity, up to 160LM/W
- L1520XW65MM
- Adopt PMMA efficient lens, lower decay and high UV tolerance
- Unique aluminum housing(6063-T5) with good heat dissipation
- Alumin pcb(PCB) with high thermal conductivity and thermal resistance.
- Widely used in shopping malls, supermarkets, warehouses and brand chain stores
New T.LINE series track linear light for large areas with efficient and powerful lighting systems.
T. LINE provides the optimum solution and can be equipped with up to 10,880lm.
-Innovative design with quick installation
-High lighting perfermance to meet new requestments
-Rooms with high ceilings can also be efficiently and homogeneously illuminated. –
-Particularly energy-efficient optical lens systems which permit diffferent beam characteristics
TECHNICAL DATA
|
Housing materials |
Extrusion aluminum 6063-T5 |
|
Size |
L1452*W65mm |
|
Housing color |
Black, White, |
|
Light source |
SMD LED |
|
UGR |
<24 |
|
Kelvin |
2700K/3000K/4000K/6000K |
|
CRI |
80+,90+ |
|
Luminous efficiency |
160lm/W @CRI80; |
|
Beam angle |
60° 90° Double Asymetricals 20° |
|
Adjustable |
– |
|
Wattage |
40W 45W 50W 55W adjustable |
|
Voltage |
AC220-240V |
|
Dimming |
on/off , DALI |
|
Driver |
PF>0.95 flicker-free isolated constant current driver |
|
Track adapter |
1/3 phase universal adapter |
|
Warranty |
5 years |
| Model No. | CCT | CRI | LED Power | UGR | LED Output | Beam angle |
| LM-TL55W-150A | 3000k,4000K | CRI 90/80 | 35W 45W 50W 55W Adjustable | <24 | 160lm/W | 60° 90° DS20° |
| LM-TL35W-150A | 3000K | CRI97/90/80 | 35W | <24 | 160lm/W | 60° 90° DS20° |
| LM-TL45W-150A | 3000K | CRI97/90/80 | 45W | <24 | 160lm/W | 60° 90° DS20° |
| LM-TL55W-150A | 3000K | CRI97/90/80 | 55W | <24 | 160lm/W | 60° 90° DS20° |
| LM-TL35W-150A | 4000K | CRI97/90/80 | 35W | <24 | 160lm/W | 60° 90° DS20° |
| LM-TL45W-150A | 4000K | CRI97/90/80 | 45W | <24 | 160lm/W | 60° 90° DS20° |
| LM-TL55W-150A | 4000K | CRI97/90/80 | 55W | <24 | 160lm/W | 60° 90° DS20° |
