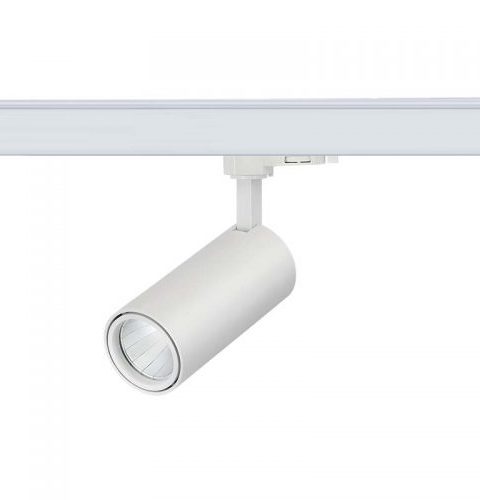

Tracklight TL65A S model 8W-15W ,Reflector

♦ High CRI: 80+/90+/97+ (2700K/3000K/4000K) ♦ Driver intrack, external driver solution, flicker-free, PF>0.95 ♦ Track adapter: 6/4 wire 3 phase, 3/2 wire 1 phase ♦ High luminous efficiency: 90-140lm/W @CRI80 ♦ Wattage: 10W, 15W, 20W, 25W, 30W, 35W, 40W,45W ♦ Extended warranty, 3/5/7/10 years

SKU: TL65AXX Categories: ,

-CYLINDER TRACK LIGHTING have a very compact design thanks to their built-in driver. They are therefore less disturbing when they are used in retail spaces, shop windows or showrooms. However, the light performance is their greatest asset. The optical lens ensures an optimum light beam and very low glare.

  • UGR < 19
  • 100lm/w-130lm/W

-The directional integrated track lights allow you lights to focus illumination in those places where it is needed.

-By making use of universal 1/3-phase rails, one can obtain functional and adaptive lighting that is ideal as accent lighting. The spots can be easily mounted and tilted.

-With a lifespan of up to 50,000 hours this luminaire is ideal for lighting systems in shops, museums, art galleries, exhibition halls, libraries, bakeries and many other commercial or private applications. Integrated track lights offer with the Citizen led chip with a very high color rendering (CRI 97) and a flicker-free driver.


 Housing materials

ADC12 Die cast aluminum



 Housing color

Black, White, Silver

 Light source



Warm white, neutral white, cool white





 Luminous efficiency

90-120lm/W @CRI80;

 Beam angle

15°, 24°, 38°, 60°


Continuous 350° rotation and 90° titable


8w,10w ,15w






PF>0.95 flicker-free isolated constant current driver

Track adapter

1/3 phase universal adapter


3-5 years

LED type: Bridgelux
Luminous flux: 8Watt: neutral white ,800Lumen

10 Watt: neutral white 1100 Lumen

10Watt: warm white 1500 Lumen

15Watt: warm white 1500 Lumen

Colour temperature: neutral white 4000 K

warm white 3000 K

CRI: 90
Beam angle: 15°24°36° 60°
UGR: < 19

Due to conditions of production photometric data can vary from production batch to production batch within the EU directive.

Model No. CCT Bean angle SDCM  lumen Output CRI URG
TL62A08WXX 2700K 15/24/38/60° <3 800lm >80(premium 90) <19
TL62A10WXX 3000K 15/24/38/60° <3 1000lm >80(premium 90) <19
TL62A15WXX 3500K 15/24/38/60° <3 1750lm >80(premium 90) <19
TL62A08WXX 4000K 15/24/38/60° <3 950lm >80(premium 90) <19
TL62A10WXX 5000K 15/24/38/60° <3 1200lm >80(premium 90) <19
