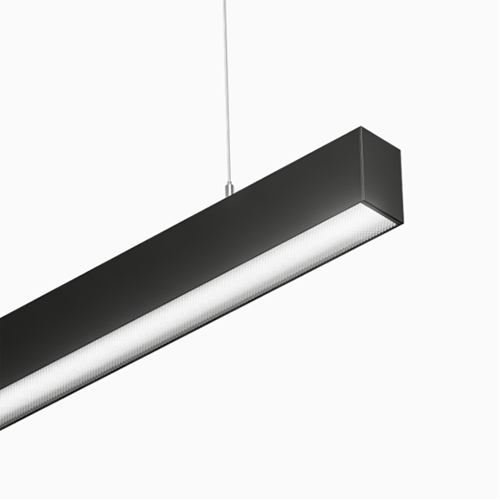

.Extruded aluminium profile with 60mm wide and 75mm height . office or public lighting .H shape design for single and easy continuous line .UGR<19(Microprismatic ) and UGR<22 (Opal Cover)
Product family description (SKD service available)

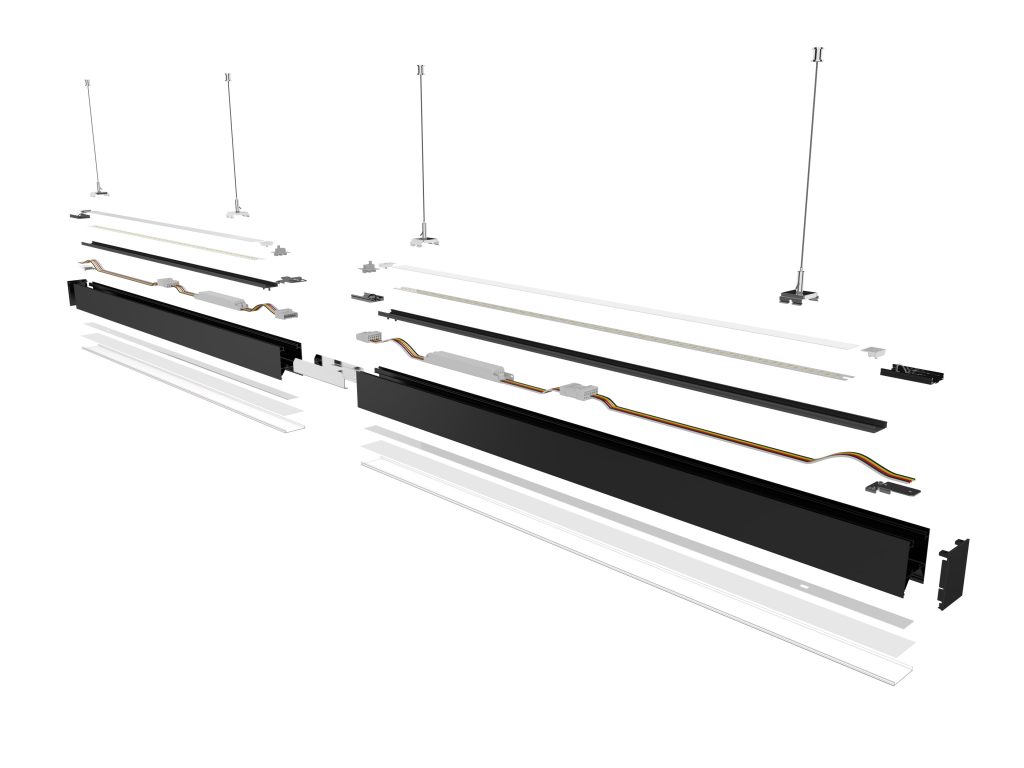

- Luminaire housing from extruded aluminium profile with 60mm wide and 75mm height
- Designed with 1.2mm led aluminum profile for office or public lighting
- H shape design for single and easy continuous line
- UGR<19(Microprismatic ) and UGR<22 (Opal Cover)
- Indirect/direct & Direct option
- Surface white powder coated; luminaire profile with pre-assembled converter unit can be pre-mounted;
- High Performance Opal cover for uniform illumination;
- micro prismatic PMMA diffuser incl. diffuser film for homogeneous illumination and reduced luminance;
- Energy-efficient LEDs with very good colour rendering; binning initial ≤ 3 MacAdam; available in the light colours 3000K and 4000K; CRI≥ 80; min. 90 % of the luminous flux after 50000 hours;
- Protection IP 20; IO40
- optionally non-dimmable or DALI-2 control
|
Housing materials |
6063 extrusion aluminum alloy |
|
 Size |
L1200*w60*H75mm; 21W L1200*w60*H75mm;37W L1500*w60*H75mm;40W L1500*w60*H75mm;50W |
|
 Housing color |
Black, White, |
|
 Light source |
high efficiency SMD 2835 |
|
 Color  |
Warm white, neutral white, cool white |
|
 Kelvin |
3000K/4000K/Tunable White |
|
 CRI |
80+,90+, |
|
 Luminous efficiency |
150lm/W @CRI80 ,130lm/W (Grille) |
|
 Beam angle |
120°(Opal diffuser);90°(Microprismatic UGR<19) |
|
Continuous 3 |
YES |
|
 Finish |
Matt White; Black |
|
 Voltage  |
AC200-240V/ AC90-130V |
|
 Dimming |
on/off ,DALI |
|
 Driver |
PF>0.95 flicker-free isolated constant current driver |
|
Installation |
Suspended |
|
 Warranty |
3 years; 5 years |
