Product family description

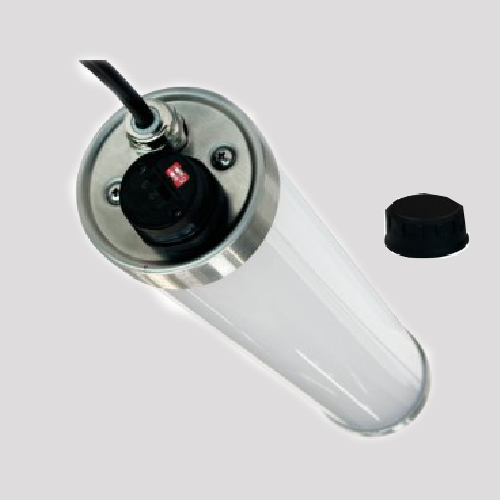

- Luminaire housing from extruded aluminium profile with 80mm Diameter
- Designed IP69K suitable for harsh enviroment ,car parking and bridge and other indoor and outdoor lighting
- 3000K 4000k 6000k CCT dipswitch
- Single luminaire
- PCÂ Opal or clear cover option
- Indirect 140° wide beam angle
- Surface white powder coated; luminaire profile with pre-assembled converter unit can be pre-mounted;
- light inset can be installed without tools;
- High Performance Opal cover for uniform illumination 130lm/W
- Energy-efficient LEDs with very good colour rendering; binning initial ≤ 3 MacAdam; available in the light colours 3000K and 4000K; CRI≥ 80; min. 90 % of the luminous flux after 50000 hours;
- Protection IP 67; IK10
|
Housing materials |
6063 extrusion aluminum alloy |
|
 Size |
L1200*D80mm; 40W L1500*D80mm;60W L900*D80mm;30W L600*D60mm;20W |
|
 Housing color |
Siliver |
|
 Light source |
high efficiency SMD 2835 |
|
 Color  |
Warm white, neutral white, cool white |
|
 Kelvin |
3000K/4000K/Tunable White |
|
 CRI |
80+,90+, |
|
 Luminous efficiency |
150lm/W @CRI80 ,130lm/W （Opal) |
|
 Beam angle |
120°(Opal diffuser);120°(Microprismatic UGR<19) |
|
Continuous 3 |
YES |
|
 Finish |
Matt White; Black |
|
 Voltage  |
AC200-240V/ AC90-130V |
|
 Dimming |
DALI2, 0/1-10V, on/Off, Microwave sensor |
|
 Driver |
PF>0.95 flicker-free isolated constant current driver |
|
Installation |
Suspended or surface mounted |
|
 Warranty |
3 years; 5 years |
