♦ High CRI: 80+/90+/97+ (2700K/3000K/4000K) ♦ Driver intrack, external driver solution, flicker-free, PF>0.95 ♦ Track adapter: 6/4 wire 3 phase, 3/2 wire 1 phase ♦ High luminous efficiency: 90-140lm/W @CRI80 ♦ Wattage: 10W, 15W, 20W, 25W, 30W, 35W, 40W,45W ♦ Extended warranty, 3/5/7/10 years

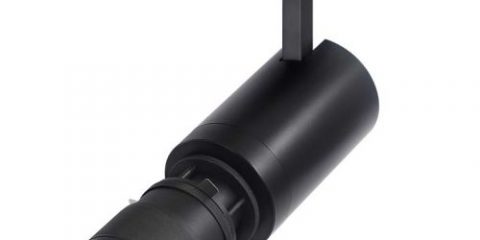

-CYLINDER TRACK LIGHTING have a very compact design thanks to their built-in driver. They are therefore less disturbing when they are used in retail spaces, shop windows or showrooms. However, the light performance is their greatest asset. The optical lens ensures an optimum light beam and very low glare.
- UGR < 19
- 100lm/w-130lm/W
-The directional integrated track lights allow you lights to focus illumination in those places where it is needed.
-By making use of universal 1/3-phase rails, one can obtain functional and adaptive lighting that is ideal as accent lighting. The spots can be easily mounted and tilted.
-With a lifespan of up to 50,000 hours this luminaire is ideal for lighting systems in shops, museums, art galleries, exhibition halls, libraries, bakeries and many other commercial or private applications. Integrated track lights offer with the Citizen led chip with a very high color rendering (CRI 97) and a flicker-free driver.
TECHNICAL DATA
|
Housing materials |
Extrusion aluminum |
|
Size |
Φ130xL200mm |
|
Housing color |
Black, White, Silver |
|
Light source |
Bridgelux |
|
Color |
Warm white, neutral white, cool white |
|
Kelvin |
2700K/3000K/4000K/5000K |
|
CRI |
80+,90+,97+ |
|
Luminous efficiency |
90-140lm/W @CRI80; |
|
Beam angle |
15°, 24°, 38°, 60° |
|
Adjustable |
Continuous 350° rotation and 90° titable |
|
Wattage |
15w,20w ,30W,35w |
|
Voltage |
AC200-240V |
|
Dimming |
DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee |
|
Driver |
PF>0.95 flicker-free isolated constant current driver |
|
Track adapter |
1/3 phase universal adapter |
|
Warranty |
3-5 years |
| LED type: | Bridgelux |
| Luminous flux: | 35 Watt: neutral white 3500 Lumen
40 Watt: neutral white 4200 Lumen 35 Watt: warm white 3500 Lumen 45 Watt: warm white 4700 Lumen |
| Colour temperature: | neutral white 4000 K
warm white 3000 K |
| CRI: | 90 |
| Beam angle: | 15°24°36° 60° |
| UGR: | < 19 |
Due to conditions of production photometric data can vary from production batch to production batch within the EU directive.
| Model No. | CCT | Bean angle | SDCM | lumen Output | CRI | UGR |
| TL130A35WXX | 2700K | 15/24/38/60° | <3 | 3500lm | >80 (PREMIUM90) | <19 |
| TL130A40WXX | 3000K | 15/24/38/60° | <3 | 4000lm | >80 (PREMIUM90) | <19 |
| TL130A35WXX | 3500K | 15/24/38/60° | <3 | 3500lm | >80 (PREMIUM90) | <19 |
| TL130A40WXX | 4000K | 15/24/38/60° | <3 | 4000lm | >80 (PREMIUM90) | <19 |
| TL130A45WXX | 5000K | 15/24/38/60° | <3 | 4700lm | >80 (PREMIUM90) | <19 |
| – | – | – | – | – | _ | _ |
