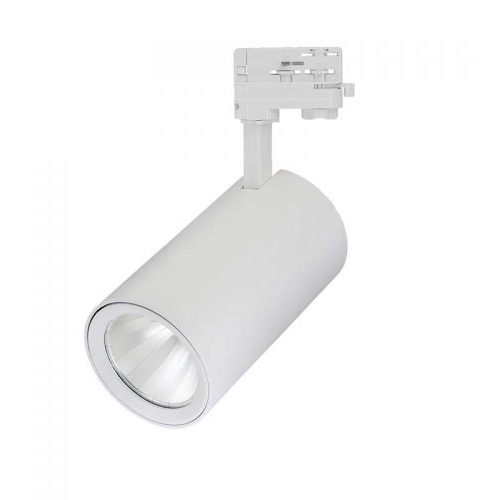

Tracklight TL110A L model 35W-40W ,Reflector

♦ High CRI: 80+/90+/97+ (2700K/3000K/4000K) ♦ Driver intrack, external driver solution, flicker-free, PF>0.95 ♦ Track adapter: 6/4 wire 3 phase, 3/2 wire 1 phase ♦ High luminous efficiency: 90-140lm/W @CRI80 ♦ Wattage: 10W, 15W, 20W, 25W, 30W, 35W, 40W,45W ♦ Extended warranty, 3/5/7/10 years

SKU: TL110AXX Categories: ,

-CYLINDER TRACK LIGHTING have a very compact design thanks to their built-in driver. They are therefore less disturbing when they are used in retail spaces, shop windows or showrooms. However, the light performance is their greatest asset. The optical lens ensures an optimum light beam and very low glare.

  • UGR < 19
  • 100lm/w-130lm/W

-The directional integrated track lights allow you lights to focus illumination in those places where it is needed.

-By making use of universal 1/3-phase rails, one can obtain functional and adaptive lighting that is ideal as accent lighting. The spots can be easily mounted and tilted.

-With a lifespan of up to 50,000 hours this luminaire is ideal for lighting systems in shops, museums, art galleries, exhibition halls, libraries, bakeries and many other commercial or private applications. Integrated track lights offer with the Citizen led chip with a very high color rendering (CRI 97) and a flicker-free driver.

TECHNICAL DATA

 Housing materials

ADC12 Die cast aluminum

 Size

Φ90xL190mm

 Housing color

Black, White, Silver

 Light source

Bridgelux

 Color

Warm white, neutral white, cool white

 Kelvin

2700K/3000K/4000K/5000K

 CRI

80+,90+,97+

 Luminous efficiency

90-140lm/W @CRI80;

 Beam angle

15°, 24°, 38°, 60°

 Adjustable

Continuous 350° rotation and 90° titable

 Wattage

30W,35w,40w

 Voltage

AC200-240V

 Dimming

DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee

 Driver

PF>0.95 flicker-free isolated constant current driver

Track adapter

1/3 phase universal adapter

 Warranty

3-5 years

LED type: Bridgelux
Luminous flux: 30 Watt: neutral white 3200 Lumen

35Watt: neutral white  3500 Lumen

30Watt: warm white 3000 Lumen

40Watt: warm white 4000Lumen

Colour temperature: neutral white 4000 K

warm white 3000 K

CRI: 90
Beam angle: 15°24°36° 60°
UGR: < 19

Due to conditions of production photometric data can vary from production batch to production batch within the EU directive.

Model No. CCT Bean angle SDCM CRI80 lumen Output CRI90 lumen Output URG
TL110A30WXX 2700K 15/24/38/60° <3 3000lm 2700lm <19
TL110A35WXX 3000K 15/24/38/60° <3 3700lm 3400lm <19
TL110A35WXX 3500K 15/24/38/60° <3 3850lm 3200lm <19
TL110A40WXX 4000K 15/24/38/60° <3 4200lm 3900lm <19
TL110A40WXX 5000K 15/24/38/60° <3 4500lm 4000lm <19
