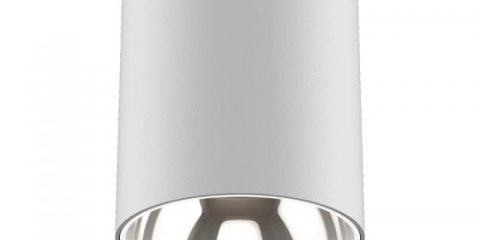

Cellia Series LED downlight 180mm

Features: CCT:2700K,3000K,3500K,4000K,or 3 CCT Selectable CRI:CRI80+, CRI90+, CRI95+, CRI98+ Full Beam Angle:15/24/38/55° Dimmable:DALI, TRIAC, ZigBee, 0/1-10V, BLE, DMX Color output:single, TW, DTW, 3CCT, RGB, RGBW, RGBCW Lamp Efficiency:Lamp lumen 80-130lm/W Size: 4 Sizes available Warranty:5 years

SKU: CELLIA CCT Downlight 180MM Categories: ,

Features:

CCT:2700K,3000K,3500K,4000K,or 3 CCT Selectable

CRI:CRI80+, CRI90+, CRI95+, CRI98+

Full Beam Angle:15/24/38/55°

Dimmable:DALI, TRIAC, ZigBee, 0/1-10V, BLE, DMX

Color output:single, TW, DTW, 3CCT, RGB, RGBW, RGBCW

Lamp Efficiency:Lamp lumen 80-130lm/W

Size: 4 Sizes available

Warranty:5 years

Cellia LED Downlight
Product code DL18020W DL22030W DL22035W
Power 20W 25W 35W
Driver Tridonic, Philips, Osram, HEP, TCI, BOKE, Lifud
Voltage AC200-240V, AC100-240V
Power factor PF>0.9
LED voltage DC36V
LED Current 500mA 600mA 750mA
Dimmable DALI, TRIAC, 0/1-10V, ZigBee, BLE, 2.4G, DMX
Color output Single color, TW, DTW, RGB, RGBW, RGBCW
Materials ADC12 Die cast Aluminum
Size D180xH95mm/D220xH100MM
Cut out D155-175mm
LED brand Citizen, Bridgelux, CREE, Philips, Luminus
CCT 2700K,3000K,3500K,4000K,5000K,6500K
CRI CRI80+, CRI90+, CRI95+, CRI98+
SDCM <3
Optics PC Lens + reflector
Beam angle 15/24/38/60°
LED Efficiency LED lumen 110-200lm/W
Lamp Efficiency Lamp lumen 80-130 lm/W
Protection IP20
Finish Matt White, Matt Black
Warranty 5 years
Model No. CCT CRI LED Power System Power LED Output System Output
DL10010W 2700K CRI97/90/80 12.5W 15W 1750LM 1500LM
DL10015W 3000K CRI97/90/80 18W 20W 2400LM 2000LM
DL13020W 4000K CRI97/90/80 22.5W 25W 3000LM 2500LM
DL13025W 3000K CRI97/90/80 27W 30.5W 3600LM 3000LM
DL18030W 4000K CRI97/90/80 29.5W 31.5W 3900LM 3400LM
DL22030W 5000K CRI97/90/80 28.5W 39.5W 4600LM 3900LM
DL22040W 6000K CRI97/90/80 38.8W 43.5W 5200LM 4400LM
