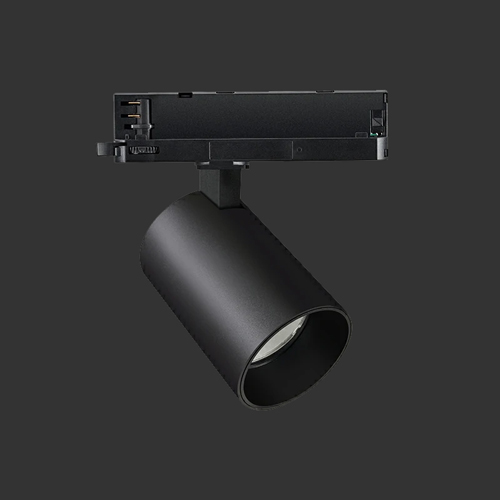

-Intrack LED tracklight -UGR < 19 -100lm/w-130lm/W -CCT 3000K-5000K adjustable by Slide Switch -Reflector and lens interchangeable -High lumen 100-110lm/W @CRI RA >80 -Interchangeable CCT& wattage with slide switch -Tunable White 2700K-6500k available as well -Internal flicker free driver -One-phase,3-phase adaptor option.
-New Intrack Compact tracklight have a very compact design thanks to their new track built-in driver. They are therefore less disturbing when they are used in retail spaces, shop windows or showrooms.
However, the light performance is their greatest asset.
The optical lens ensures an optimum light beam and very low glare.
- UGR < 19
- 100lm/w-130lm/W
- CCT 3000K-5000K adjustable by Slide Switch
- Reflector and lens interchangeable
- High lumen 100-110lm/W @CRI RA >80
- Interchangeable CCT& wattage with slide switch
- Tunable White 2700K-6500k available as well
- Internal flicker free driver
- One-phase,3-phase adaptor option.
- 3 sizes: D62mm*140MM /D90mm*108MM/D110*150MM
-The directional integrated track lights allow you lights to focus illumination in those places where it is needed.
-By making use of universal
TECHNICAL DATA
|
Housing materials |
ADC12 Die cast aluminum |
|
Size |
ΦD80xL108mm |
|
Housing color |
Black, White, Silver |
|
Light source |
COB LED |
|
Color |
Warm white, neutral white, cool white |
|
Kelvin |
2700K/3000K/4000K/5000K/3000k-5000K |
|
CRI |
80+,90+,97+ |
|
Luminous efficiency |
90-120lm/W @CRI80; |
|
Beam angle |
15°, 24°, 38°, 60° |
|
Adjustable |
Continuous 350° rotation and 90° titable |
|
Wattage |
15W,20W,25W,30W |
|
Voltage |
AC200-240V |
|
Dimming |
DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee |
|
Driver |
PF>0.95 flicker-free isolated constant current driver |
|
Track adapter |
1/3 phase universal adapter |
|
Warranty |
3-5 years |
Luminous Intensity Distribution Diagram and Lux:
Beam angle：15°
Beam angle：24°
Beam angle：38°
| Model No. | CCT | CRI | LED Power | System Power | LED Output | System Output |
| TL90IT10W | 2700K | CRI97/90/80 | 12.5W | 15W | 1750LM | 1500LM |
| TL90IT20W | 3000K | CRI97/90/80 | 18W | 20W | 2400LM | 2000LM |
| TL90IT20W | 4000K | CRI97/90/80 | 22.5W | 25W | 3000LM | 2500LM |
| TL90IT30W | 3000K | CRI97/90/80 | 27W | 30.5W | 3600LM | 3000LM |
| TL90IT35W | 4000K | CRI97/90/80 | 29.5W | 34.5W | 3900LM | 3400LM |
| TL90IT40W | 5000K | CRI97/90/80 | 34.5W | 39.5W | 4600LM | 3900LM |
| TL90IT45W | 6000K | CRI97/90/80 | 38.8W | 43.5W | 5200LM | 4400LM |
