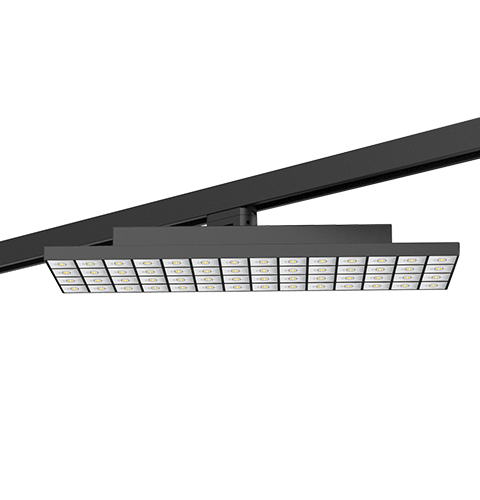

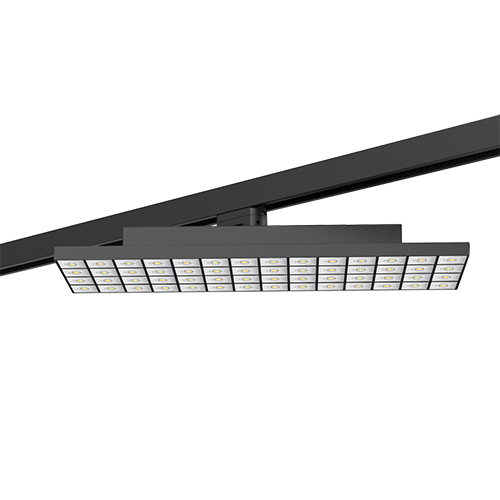

T.PANEL TRACK PANEL LIGHT HIGH VISUAL COMFORT

T.PANEL SERIES ,High Visual Comfort,130lm/W , dark-light optics with reflector and lens for reduced glare lighting,UGR<19.Provides high visual comfort that makes it perfect for offices and checkout areas.

SKU: LM-TP68W-B Categories: ,

T.LINE Track PANEL consists of a series of lights that run on a certain track structure. With universal track adapter, it can match existing European 3-circuit track rail brands, such as Eutrac, Global and Staff.

  • High luminous intensity, up to 130LM/W
  • L578*W188mm
  • Adopt PMMA  lens+ Reflector, lower decay and high UV tolerance
  • Unique aluminum housing(6063-T5) with good heat dissipation
  • Alumin pcb(PCB) with high thermal conductivity and thermal resistance.
  • Widely used in shopping malls, supermarkets, warehouses and brand chain stores
T.PANEL SERIES ,High Visual Comfort,130lm/W , dark-light optics with reflector and lens for reduced glare lighting,UGR<19.Provides high visual comfort that makes it perfect for offices and check out areas.
-Innovative design with quick installation
-High lighting perfermance to meet new requestments
-Rooms with high ceilings can also be efficiently and homogeneously illuminated. –
-Particularly energy-efficient optical lens systems which permit diffferent beam characteristics

TECHNICAL DATA

 Housing materials

Extrusion aluminum 6063-T5

 Size

L578*W188mm

 Housing color

Black, White,

 Light source

SMD LED

 UGR

 <19

 Kelvin

2700K/3000K/4000K/6000K

 CRI

80+,90+

 Luminous efficiency

130lm/W @CRI80;

 Beam angle

50°

 Adjustable

350° rotation

 Wattage

44W 52W 60W 68W adjustable

 Voltage

AC220-240V

 Dimming

on/off , DALI

 Driver

PF>0.95 flicker-free isolated constant current driver

Track adapter

1/3 phase universal adapter

 Warranty

5 years

Model No. CCT CRI LED Power UGR LED Output Beam angle
LM-TP68W-B 3000k,4000K CRI 90/80 44W 52W 60W 68W Adjustable <19 130lm/W 80°
LM-TP50W-B 3000K CRI97/90/80 50W <19 130lm/W 80°
LM-TP60W-B 3000K CRI97/90/80 60W <19 130lm/W 80°
LM-TP70W-B 3000K CRI97/90/80 70W <19 130lm/W 80°
LM-TP50W-B 4000K CRI97/90/80 50W <19 130lm/W 80°
LM-TP60W-B 4000K CRI97/90/80 60W <19 130lm/W 80°
LM-TP70W-B 4000K CRI97/90/80 70W <19 130lm/W 80°
